How to edit components after importing with 3D Interconnect enabled?

Problem

When opening components from neutral CAD file formats such as IGES, Parasolid, or STEP into SOLIDWORKS, 3D Interconnect is used to open the files. With 3D Interconnect on, SOLIDWORKS is just opening the files and not fully converting them to SOLIDWORKS files. This is indicated by a green arrow over the part/assembly icons in the FeatureManager design tree. This means the file is still linked back to the neutral CAD file, which makes it less editable.

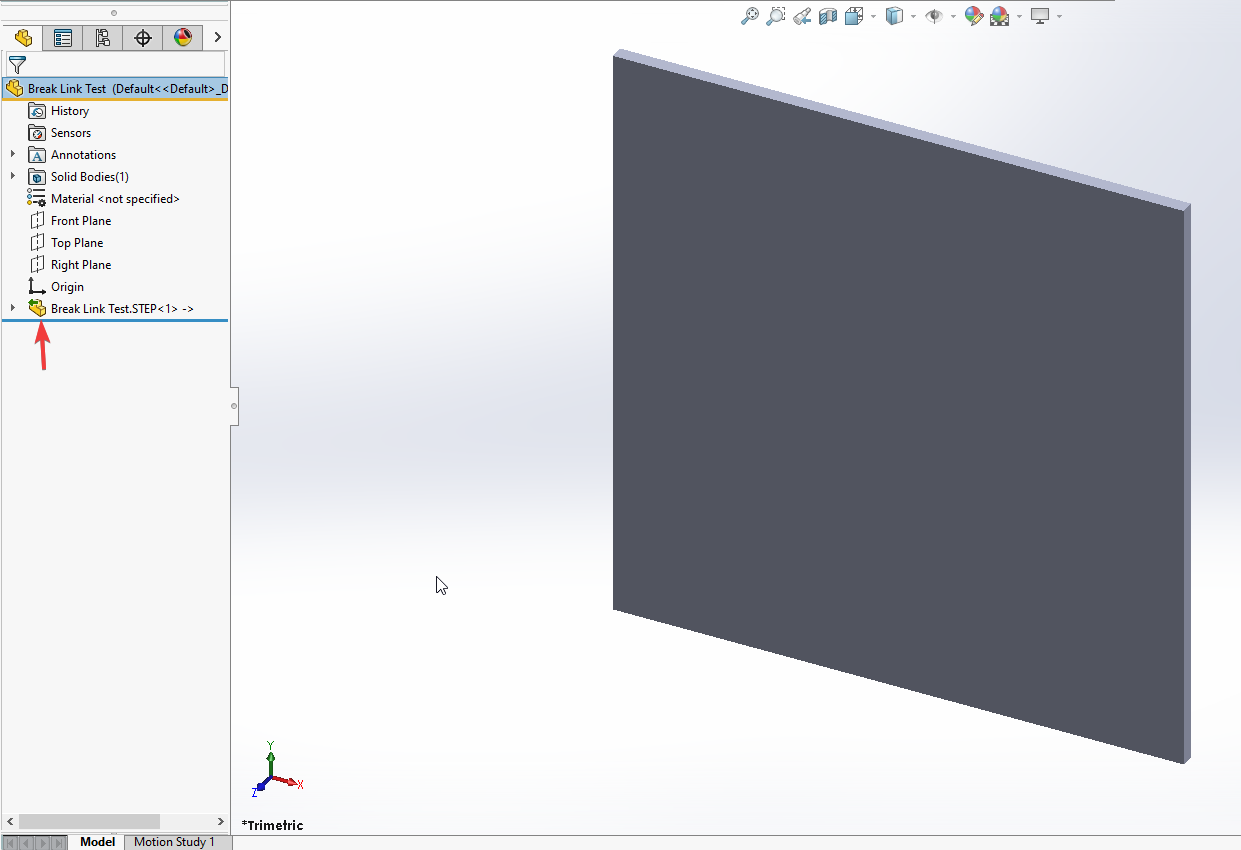

Green Arrow example

Solution

  1. Right-click the topmost sub-assembly or desired part in the FeatureManager design tree and select "Break Link" (older versions will use "Dissolve this Feature"), which will break the link to the neutral CAD file
  2. Click "Save" to save assemblies/parts with names & file locations as desired

After the link has been broken, the parts will be comprised of dumb solids which are fully editable and can be run through FeatureWorks (Insert > FeatureWorks) to recognize features. This video from SolidProfessor is a good resource on 3D Interconnect: Cross-CAD Design with SOLIDWORKS and Inventor, Fusion, Creo, Solid Edge, and Others | 3DInterconnect

For additional support, existing customers can submit a ticket or new customers can contact Hawk Ridge Systems.
