Flat Pattern DXF Does Not Show Bend Lines

SOLIDWORKS uses the options in the default drawing template to control the Flat Pattern DXF and DWG export. If you do not have bend lines visible in the default drawing template these bend lines will not appear in a DXF or DWG export. This article shows how to ensure your drawing template options are correct for the best Flat Pattern.


Changing View Options in Default Drawing Template

This section describes how to change the view setting for bend lines in the default drawing template. If you have a template that has this option enabled, you can change the default drawing template using the instructions in step 4.

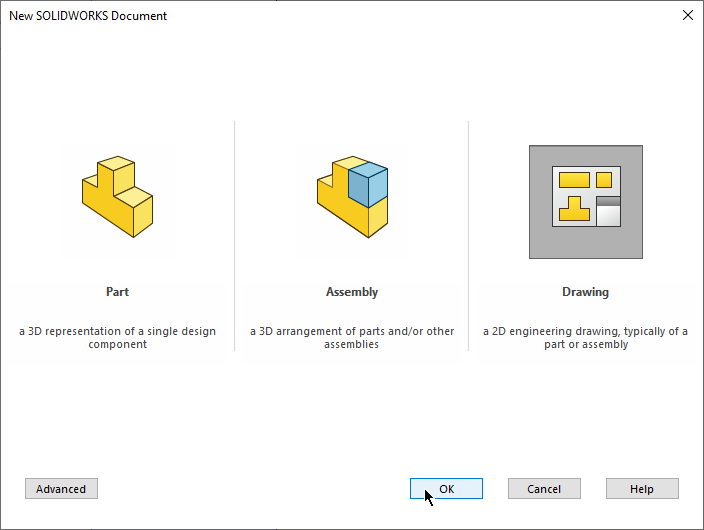

  1. Open the default drawing template by creating a new document

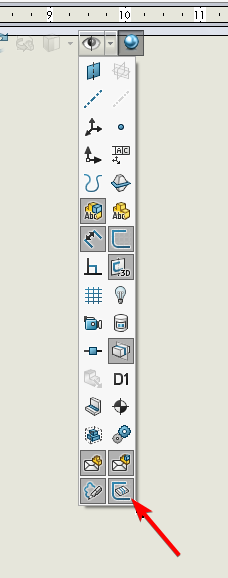

  2. Enable bend lines from the View Filter in the Heads Up Toolbar
  3. Resave the drawing template by using the Save As option and choosing file type Drawing Template.

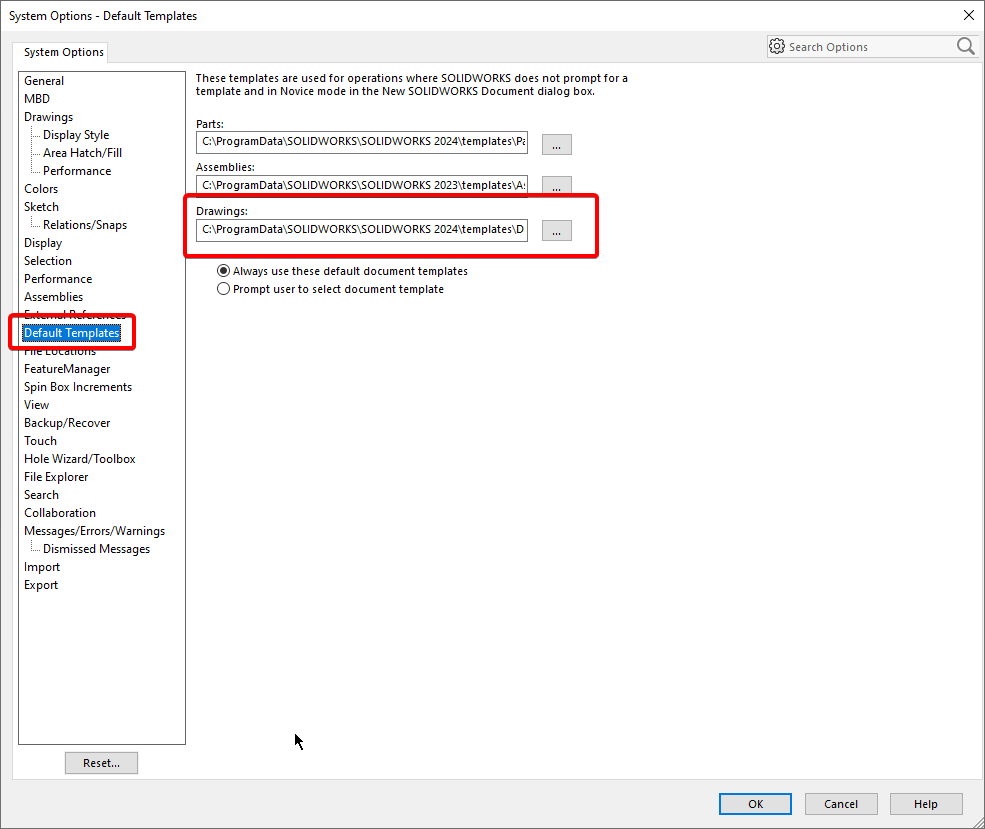

  4. If you save as a different name, you will need to change your default drawing document by going Tools>Options>System Options>Default Templates. Use the three dots to select a new drawing template

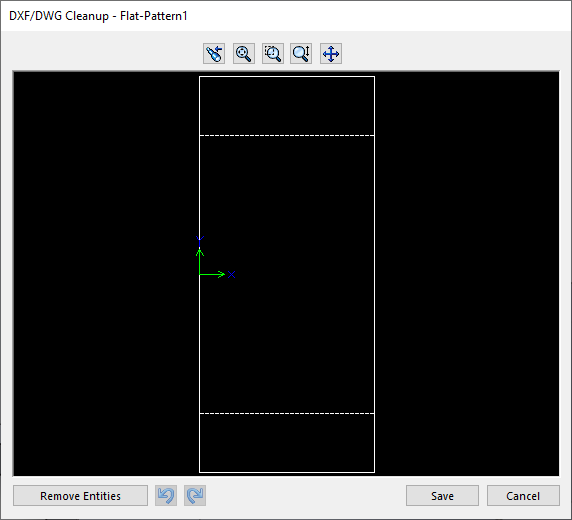

  5. Retest the DXF/DWG export
