Problem
This article discusses how to use the Autotrace tool to trace an outline of an inserted image in SOLIDWORKS. This tool is ideally used for high-contrast images and rather simple logos.
Solution

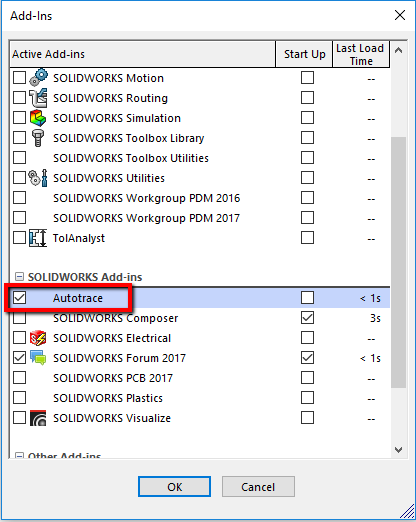

- First, with a Part file open, turn on the Autotrace tool from Tools > Add-ins, enable the ‘Autotrace’ option, and click OK.

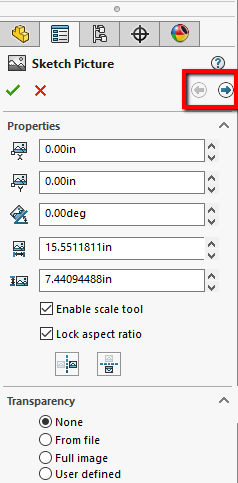

- In the Part file, insert an image by creating a new sketch and navigating to Tools > Sketch Tools > Sketch Picture to browse for the picture. Adjust the image’s position, size, and transparency as needed, and select the arrow at the top of the Sketch Picture PropertyManager to access the Autotrace functionalities.

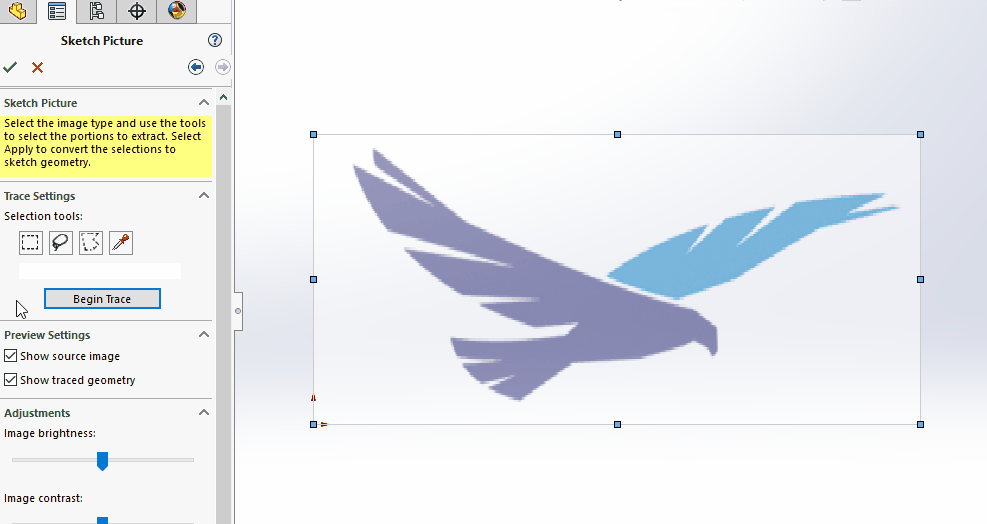

- Under the section “Trace Settings”, use the selection tools to trace the outline of the image. In the example below, the Rectangular Area tool is being used to trace the outline of a logo. When finished, click on the button “Begin Trace” to view the tracing preview.
- Use the other Autotrace functionalities, including image brightness as well as the recognition tolerance adjustments, to make adjustments.
- Once satisfied with the result, select the green check mark to accept the trace.

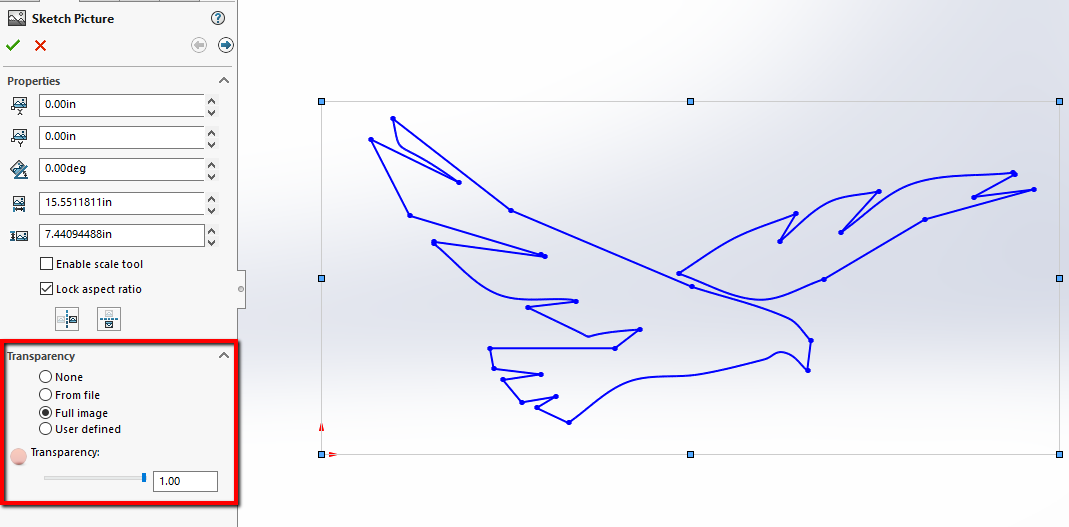

- Hide the image in the sketch to see the trace by editing the sketch, double-clicking on the image, and adjusting the transparency of the image, or right-click the sketch picture and select the option to suppress it.
