How to Carry Over a Revision Table Across Multiple Sheets

David Severud
Updated

Problem

This article goes over how to carry a revision table over to multiple sheets in a SOLIDWORKS Drawing file. Revision tables cannot be copied by right-clicking on them as there is no Copy option, or by pressing CTRL + C on the keyboard.

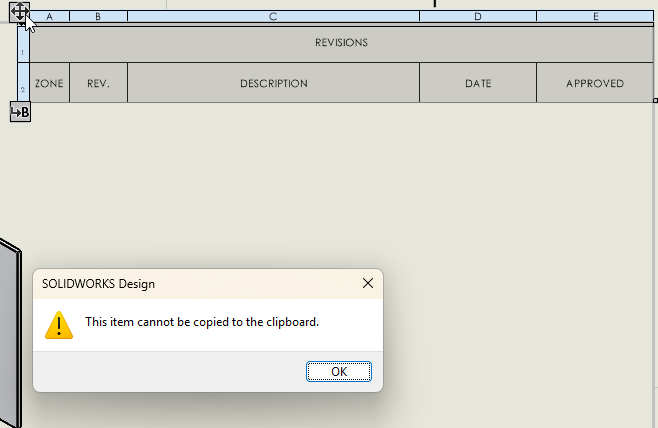

Cannot be copied

Solution

  1. Go to Options > Document Properties > Tables > Revision

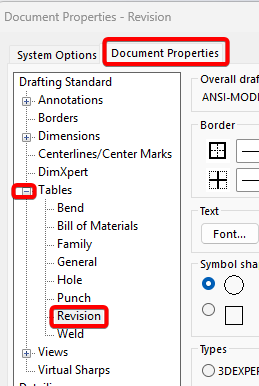

    Revision Document Properties

  2. Set the "Multiple sheet style" to "Linked" and click "OK"

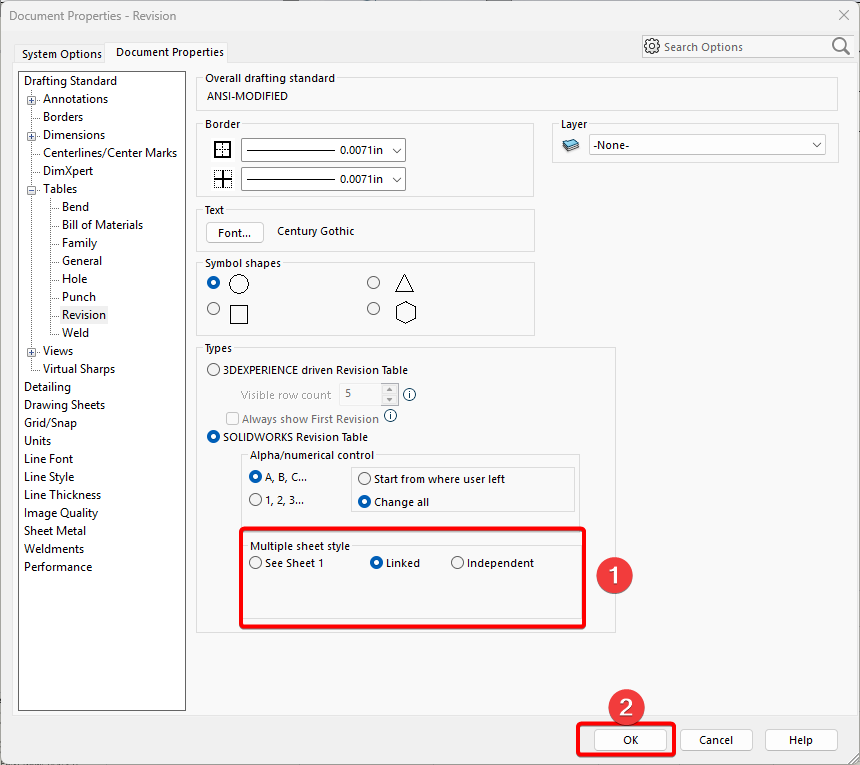

    Set to linked and click OK
  3. Create new Revision tables on each desired sheet and see that they are linked together

For additional support, existing customers can submit a ticket or new customers can contact Hawk Ridge Systems.
