SolidWorks Quick Tip - 4 Things to Do Before Every Flow Simulation Analysis – Hawk Ridge Systems

Before starting any Flow Simulation Project, we have developed a to-do list of preprocessing to perform on your CAD geometry. This tends to minimize headaches when you've already put hours and hours into an analysis. The following is a list of things we do before creating a new Flow Simulation Project (in no particular order):

Force Rebuild with Verification on Rebuild (VOR) turned on

Verfification on Rebuild.png

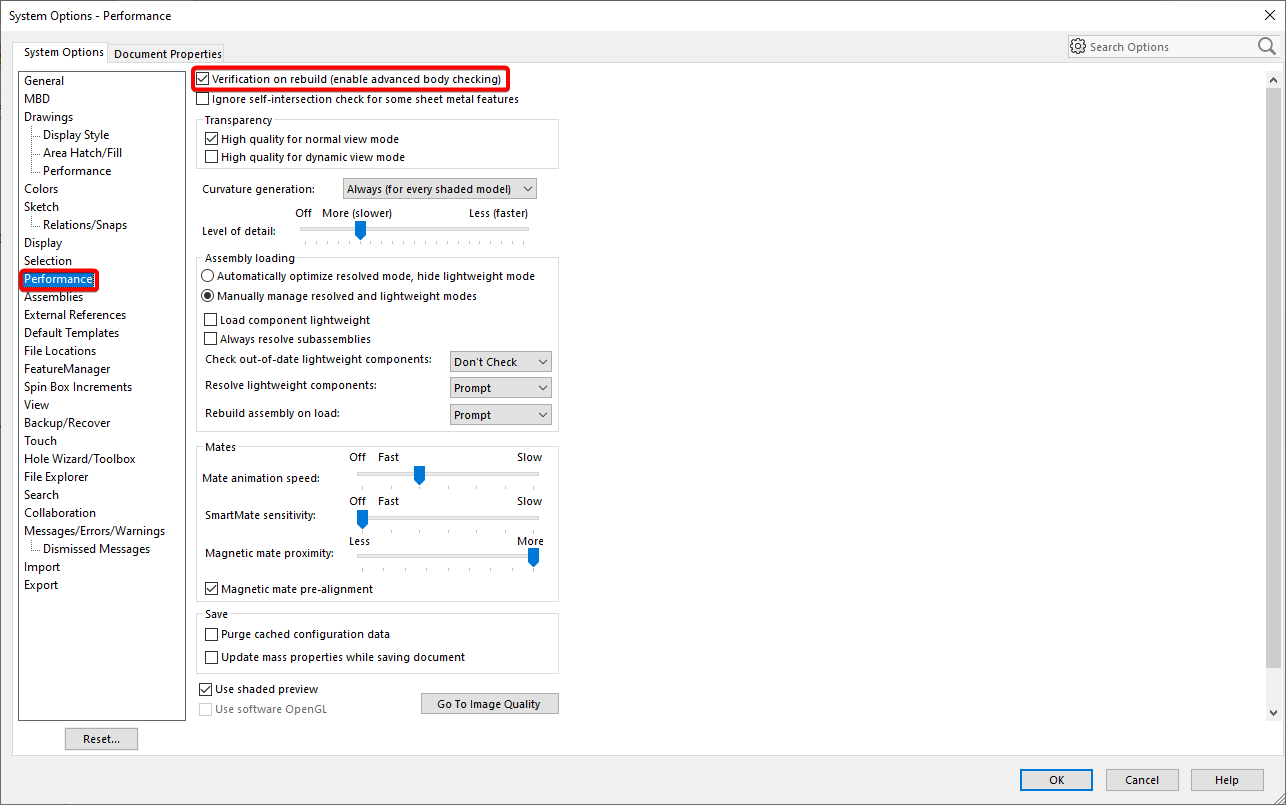

Go to Tools > Options > System Options Tab > Performance Section > Verification on Rebuild checkbox, make sure this is checked, exit out of the options, and press CTRL-Q. Depending on the file, this may take a while. This setting checks every feature against all existing faces and edges, not just adjacent faces and edges. When this option is turned on, features that cause invalid geometry fail. If any features fail, fix them now.

Check Entity

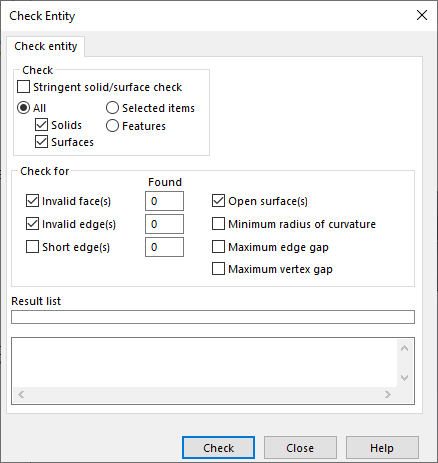

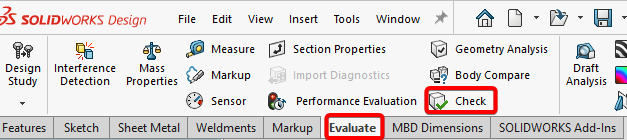

This is a really simple tool for checking for invalid faces and edges. This tool is especially helpful when you have imported geometry. This tool can be found at the part or assembly level under Tools > Check.

Flow Simulation’s Check Geometry

Check Geometry.png

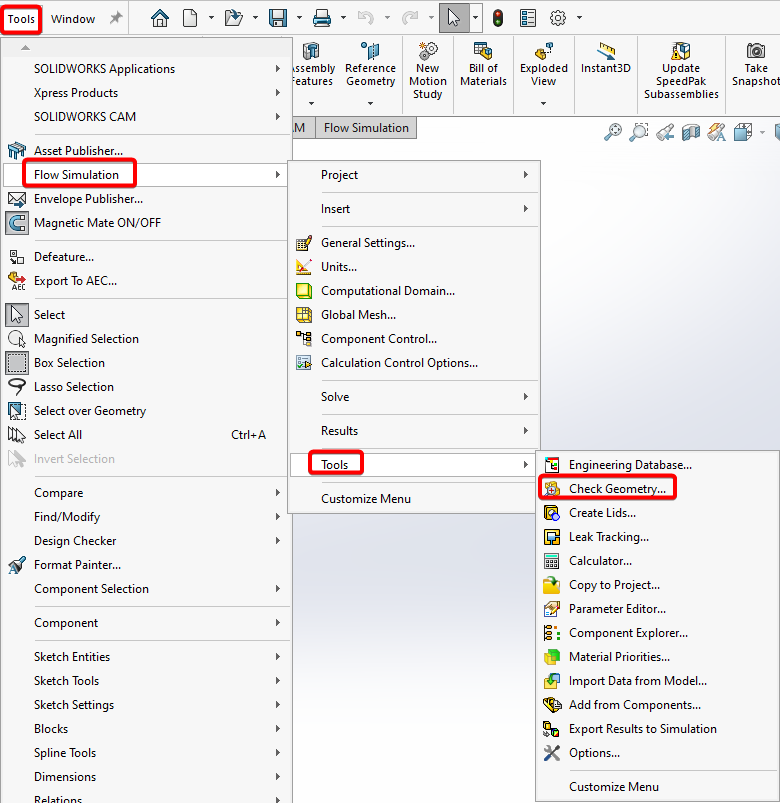

This is a great way to find out if you have any invalid contacts that Flow Simulation doesn’t like. Certain invalid contacts can be fixed by this tool, but it is a good idea to fix these yourself before proceeding any further. This tool will also check if you have a fully enclosed fluid volume, something you are going to need if you are doing an internal analysis. This tool can be found with the Flow Simulation add-in turned on under Tools > Flow Simulation > Tools > Check Geometry.

Interference Detection

Interference Detection.png

Interference detection is a very useful tool for Simulation as well as Flow Simulation. Flow Simulation is not as concerned with interference, but if you are doing heat conduction problems it is found in your Evaluate tab on the Command Manager, or under Tools > Interference Detection (at the Assembly level). very important that the faces that you think are touching, are actually touching. This is where the “Treat coincidence as interference” checkbox comes in. Having this checkbox on will list, in addition to any material interferences, all sets of touching faces. Also, a checkbox that should be on is the “Include multibody part interferences” (don’t want to forget those). This tool can be found in your Evaluate tab on the Command Manager, or under Tools > Interference Detection (at the Assembly level).

Bonus: Import Diagnostics

Import Diagnostics.png

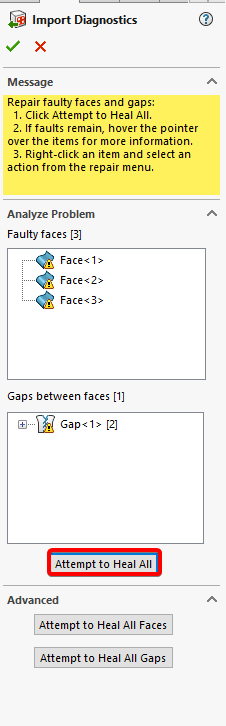

If you use imported geometry (IGES, STEP, Parasolid, etc.), this tool is something you should already be familiar with. There are many times where we have seen customers import their geometry, and start adding features, and then when they start to have problems, we find that their initial geometry was faulty. This ends up costing the customer a lot of time remaking their part; simply running the diagnostic tool, in the beginning, would have saved a lot of headaches. If this finds any faulty faces or gaps, you can try to heal all; if this doesn’t fix it you may have to start deleting and patching faces manually. This tool can be found at the part level, under Tools > Import Diagnostics. Hopefully, this checklist will help you catch potential problems before they turn into nightmares. Good luck and happy Simulating!

For further assistance, please contact our HawkSupport team at 877-266-4469(US) or 866-587-6803(Canada) and support@hawkridgesys.com.
