What Permissions are Required to Use the Toolbox Correctly?

When setting up a multi-user toolbox you will need to make sure all users have the correct permissions to access it. For the top-level toolbox SOLIDWORKS Data folder, each user will need to have full control assigned in the Windows folder security properties. For the Browser folder located directly in the Toolbox folder, it will need to be set to Read-Only. What happens is that when you use the toolbox (add a new part, edit toolbox definitions... etc.) the toolbox will instantly change from Read-Only to writable and back. So those properties need to be set properly and stay the same over time.

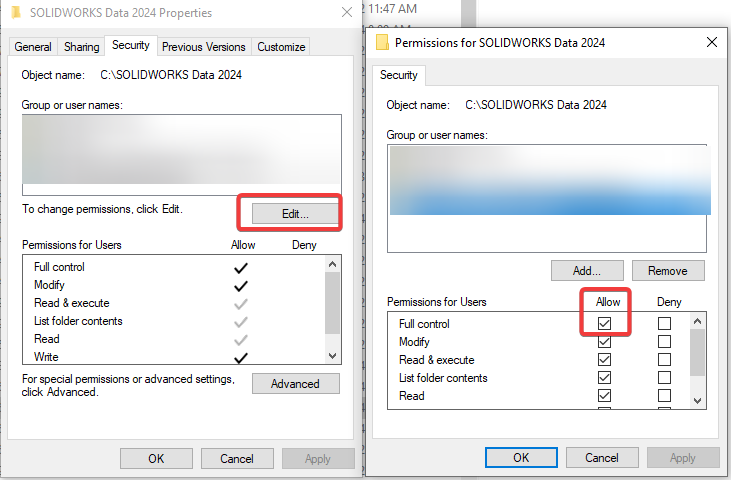

Steps for Setting Full Control

1. Navigate to the top-level Toolbox Folder. By default, this is named SOLIDWORKS Data and is located on the (C:) Drive
2. Right-click on the folder and select Properties
3. Go to the Security Tab
4. Select the Group or User from the list
5. Click Edit
6. Select Full Control
7. Hit OK

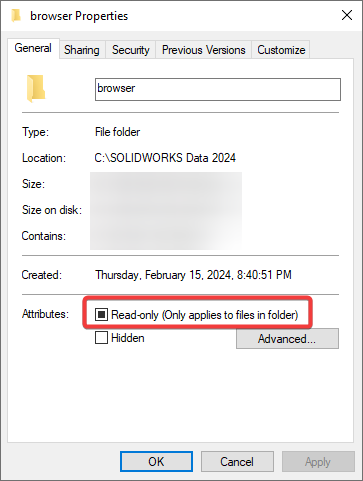

Setting the Browser to Read-Only

1. Navigate to the top-level Toolbox Folder. By default, this is named SOLIDWORKS Data and is located on the (C:) Drive.
2. Go down one level into the folder
3. Find the browser folder
4. Right-click and select Properties
5. Under the General Tab and in the Attributes section select "Read-only"

For further assistance, please contact our HawkSupport team at 877-266-4469(US) or 866-587-6803(Canada) and support@hawkridgesys.com.
