Drawings are Slow to Save in SOLIDWORKS 2022

David Severud
Updated

Problem

Starting with SOLIDWORKS 2020, Detailing Mode helps edit large drawings easily but may slow drawing file saving due to extra data. This article shows how to adjust settings to improve performance in SOLIDWORKS 2022. Saving speed improved in SOLIDWORKS 2022 SP4 after SPR 1194315 was fixed. For SOLIDWORKS 2022, check out this article: Drawings are Slow to Save in SOLIDWORKS 2020 and 2021 – Hawk Ridge Systems

Solution

  1. Open SOLIDWORKS
  2. Open a Drawing File with slow Saving Performance
  3. Go to Tools > Options > Document Properties > Performance
  4. Uncheck "Save model data" and click "OK"
  5. Save the file
  6. Optional: Use File > Save As to save over the existing Drawing Template to save the setting change to the template for future Drawings.

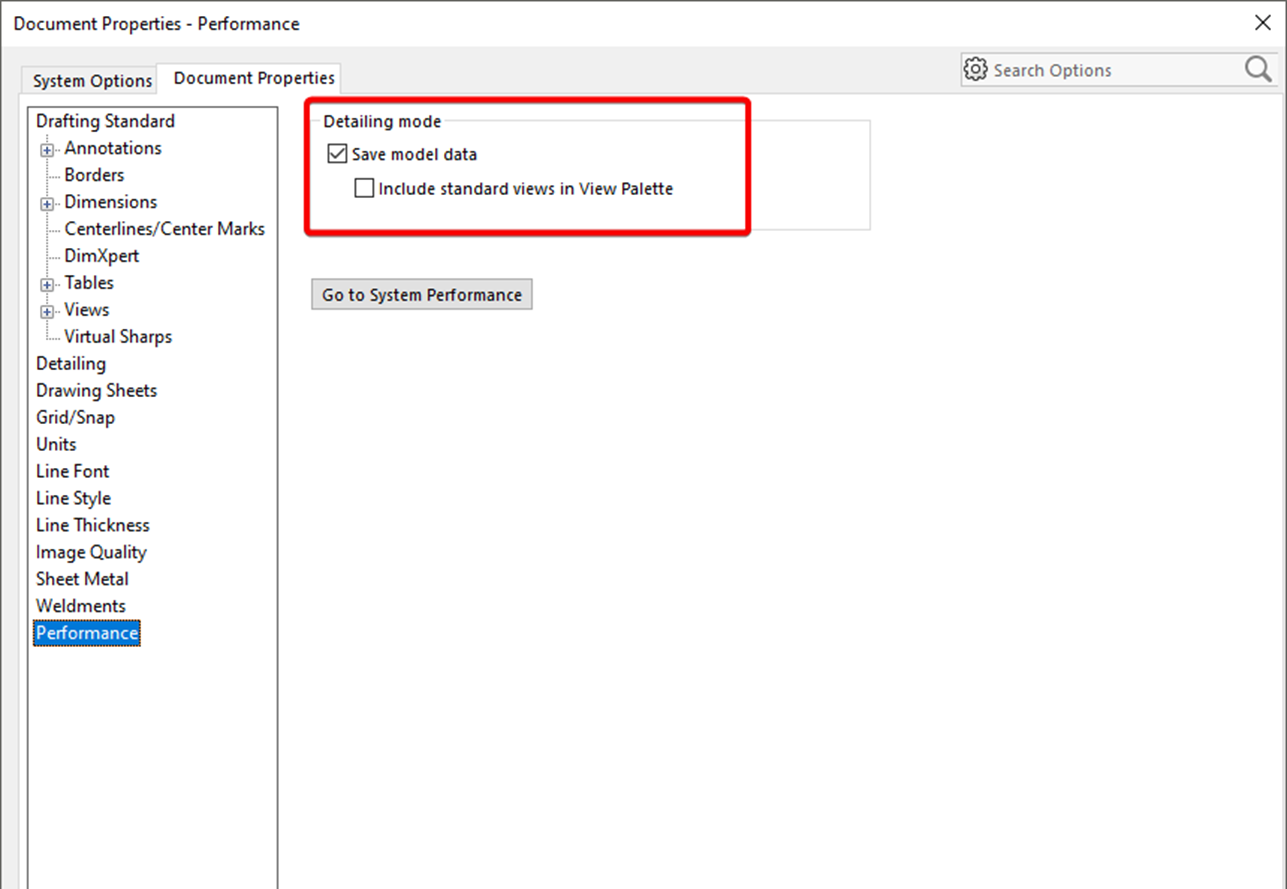

Uncheck Save Model Data in SOLIDWORKS 2022 or Newer

For additional support, existing customers can submit a ticket or new customers can contact Hawk Ridge Systems.
