FeatureManager Design Tree Larger than SOLIDWORKS Window

Avatar
Mike Starr

Problem

The SOLIDWORKS FeatureManager Design Tree can be dragged to change its size, should you need to view more or less details such as file reference names. However, should you change monitors or screen resolution, the FeatureManager Design Tree may extend beyond the edges of the SOLIDWORKS window.

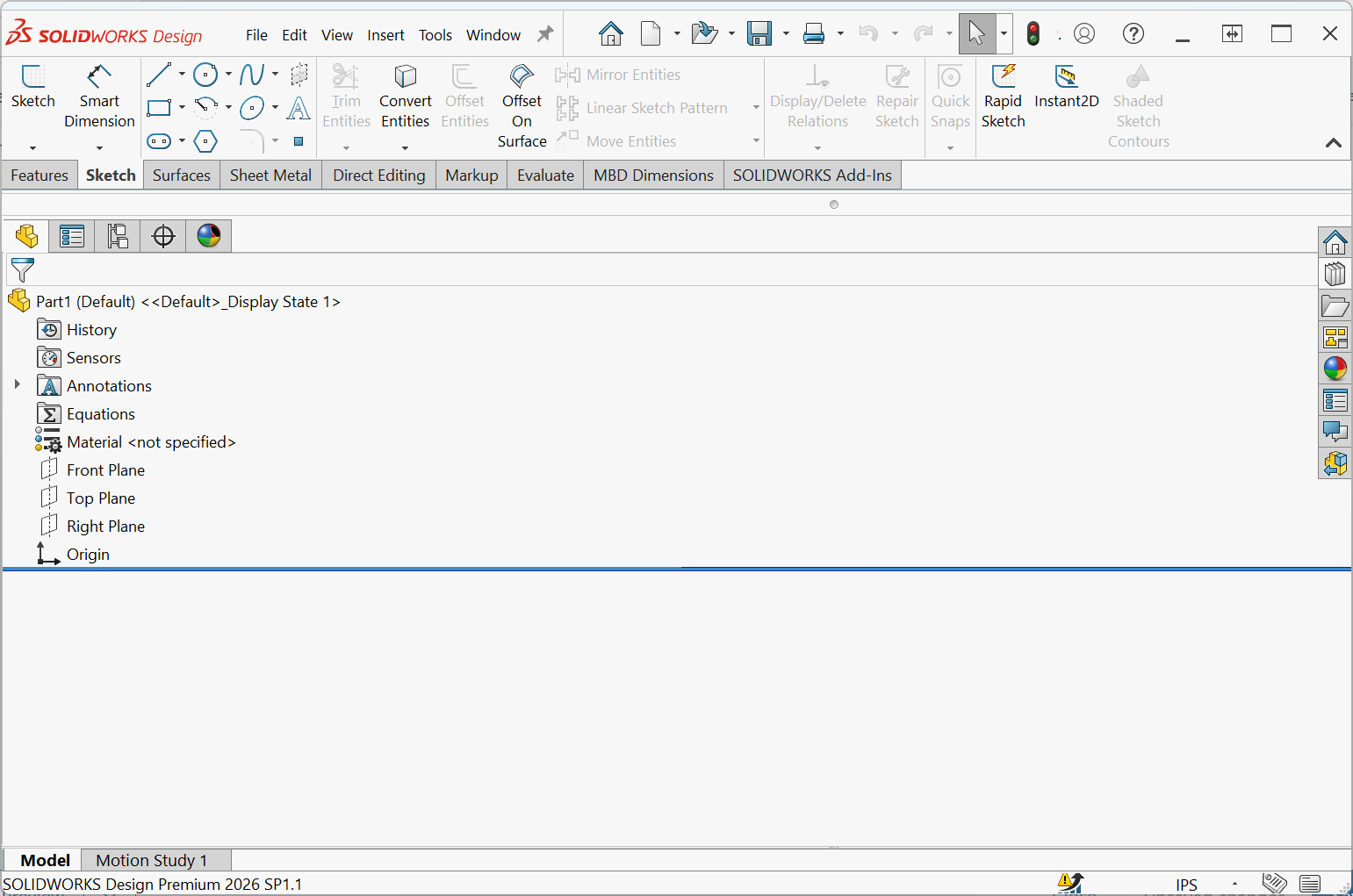

Feature Manager Design Tree shown larger than SOLIDWORKS Window

Solution

  1. In the upper left-hand corner of SOLIDWORKS, go to View > User Interface.

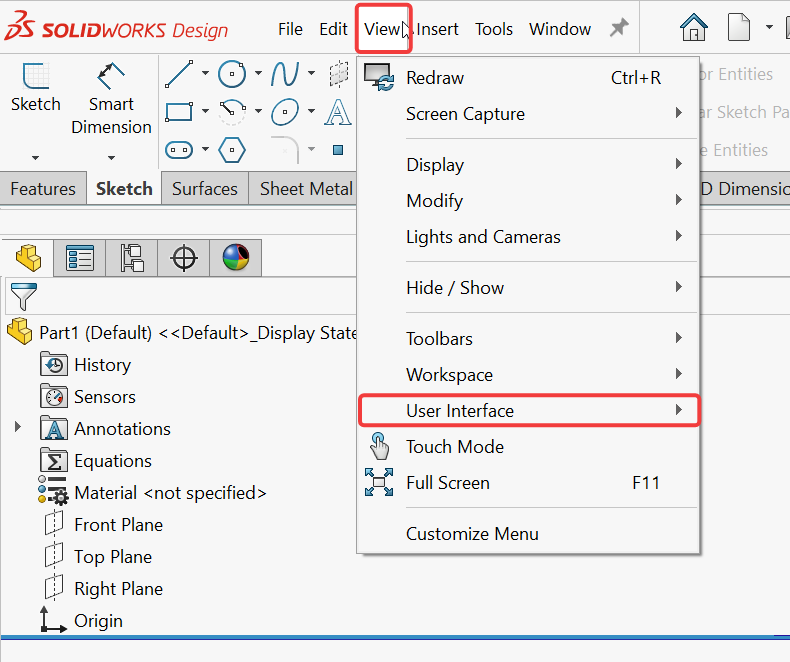

    SOLIDWORKS View, User Interface menu location

  2. From the pop-out menu, click on "FeatureManager Tree Area" (or use the shortcut: F9).

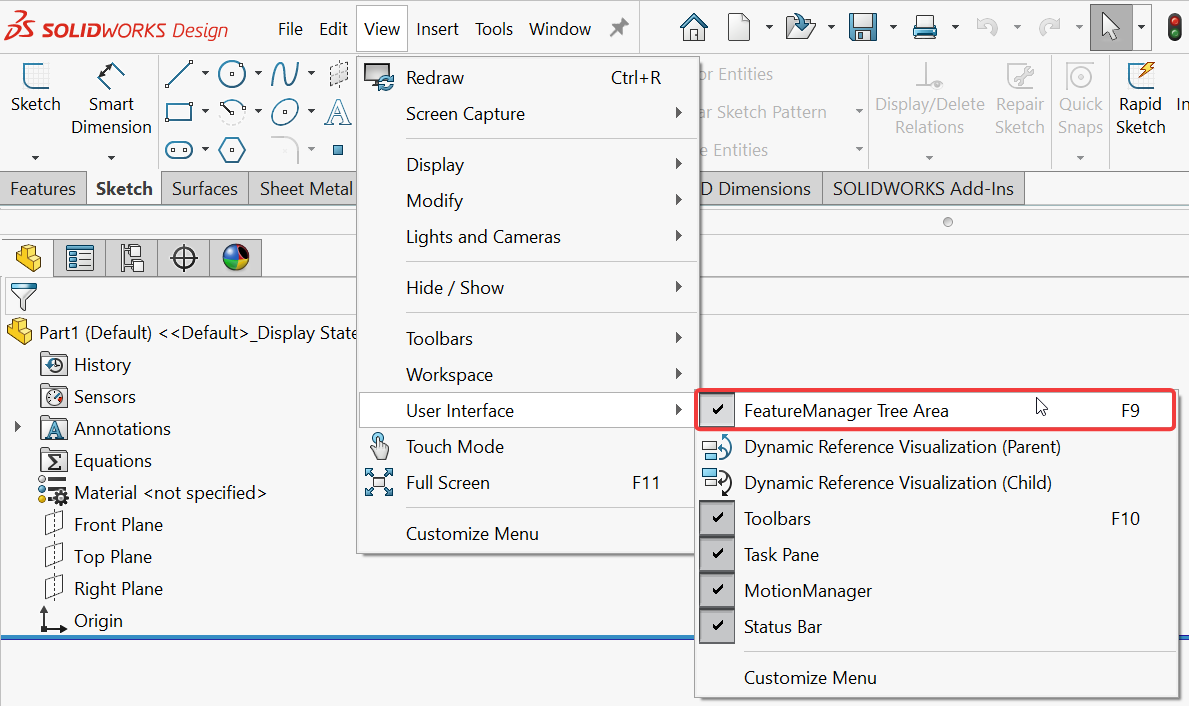

    SOLIDWORKS FeatureManager Tree Area location

  3. Click and drag the tab on the left side of the screen to bring the FeatureManager Design Tree back to the desired location.

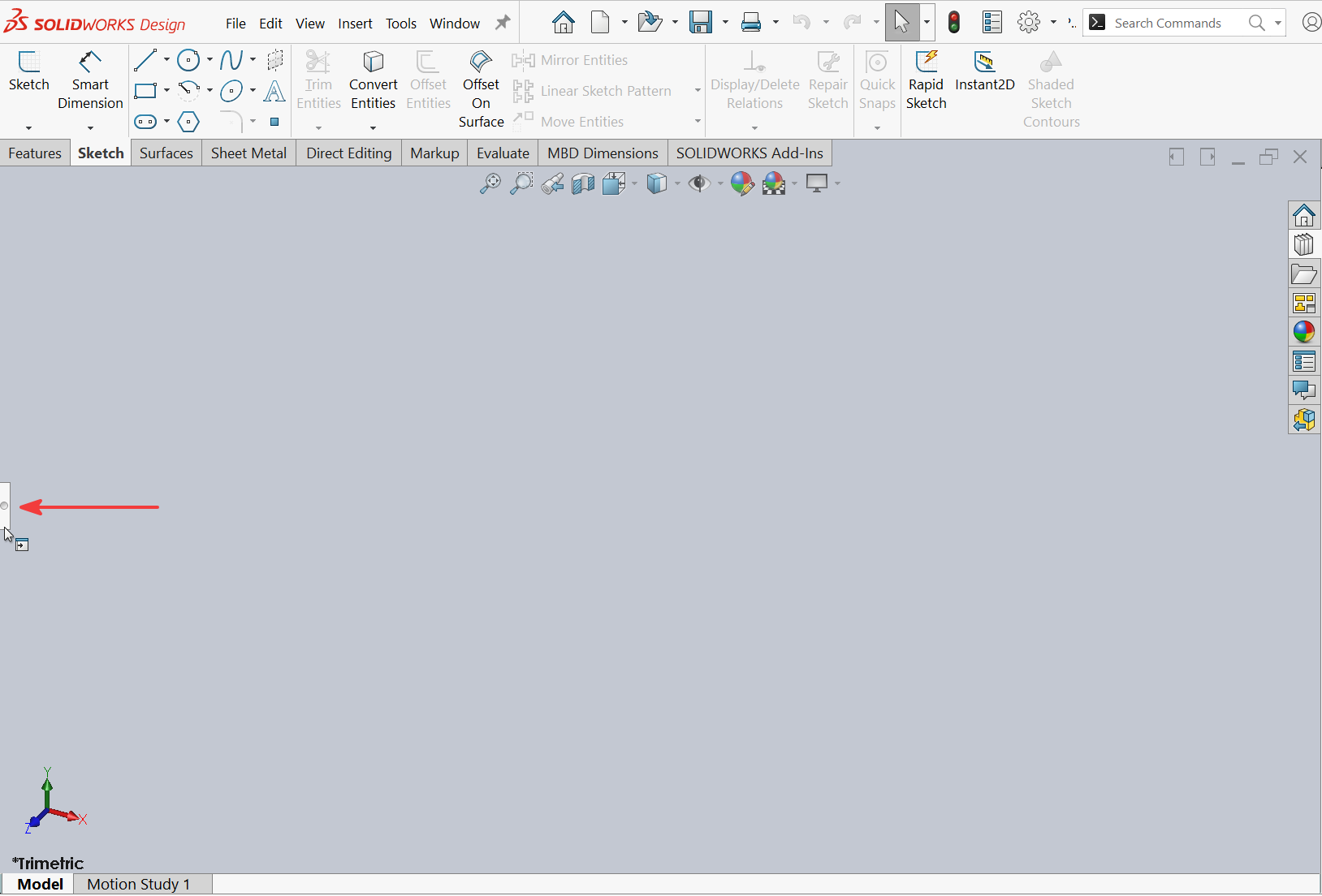

    Location of tab to adjust FeatureManager size

For further technical support, please contact Hawk Ridge Systems at 877.266.4469 for the U.S. or 866.587.6803 for Canada and support@hawkridgesys.com.
