Setting the Data Card Tab Display

Avatar
Stephanie Rodas

This article discusses how to set the display of the active configuration (the default) or the as built (@) configuration in the data card. For more information on the difference between these tabs, please see our article here.

To set the default display of the Data Card tab:

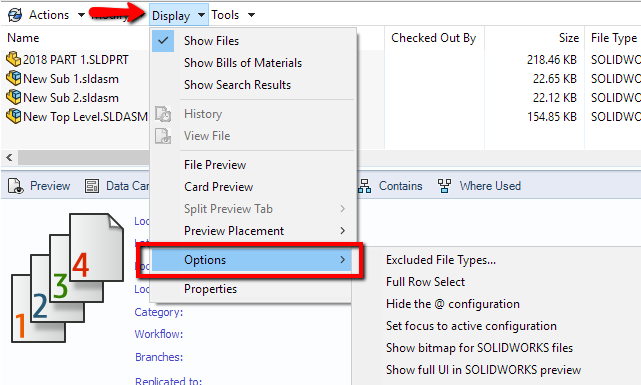

1.) In your Local Vault View, select Display > Options.

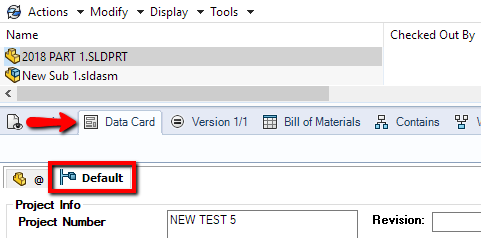

2a.) Enable 'Set focus to active configuration'. The Default configuration is displayed when you click the Data Card tab.

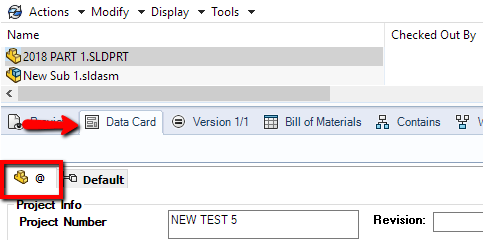

2b.) Clear 'Set focus to active configuration'. The as built (@) configuration is displayed.



Contact Us

For further assistance, please contact our HawkSupport team at 877-266-4469(US) or 866-587-6803(Canada) and support@hawkridgesys.com.
