Problem

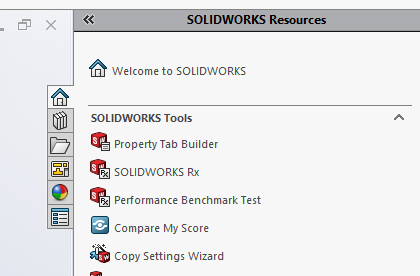

This article covers steps to show or hide the SOLIDWORKS Task Pane Toolbar. With default SOLIDWORKS settings, the Task Pane is displayed on the right side of the SOLIDWORKS user interface. When turned on, the Task Pane Toolbar shows and provides quicker access to certain Features and Add-ins through enabled tabs. These tabs may include SOLIDWORKS Resources, Design Library, File Explorer, View Palette, Appearances, Custom Properties, PDM, and other enabled Add-ins. A reference image of the Task Pane Toolbar is shown below.

Solution 1: Turn off the Task Pane Toolbar

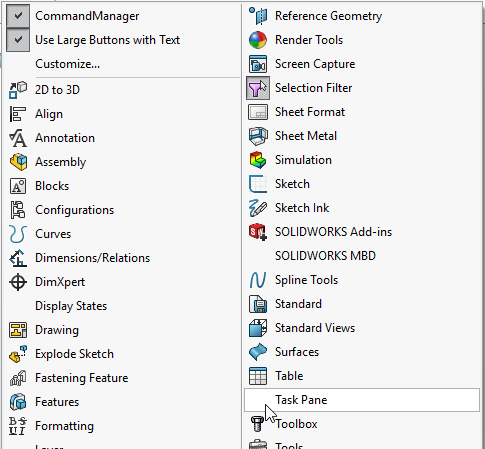

To turn the Task Pane Toolbar on or off, within SOLIDWORKS, click "View" > "Toolbars" > "Task Pane".
You can also find the toolbar menu by right-clicking in a blank area of the command manager or at the top of the SOLIDWORKS Window and selecting "Toolbars" to turn on/off the Task Pane. If this does not work, then go to Solution 2.

Solution 2: Reset the SolidWorks User Interface

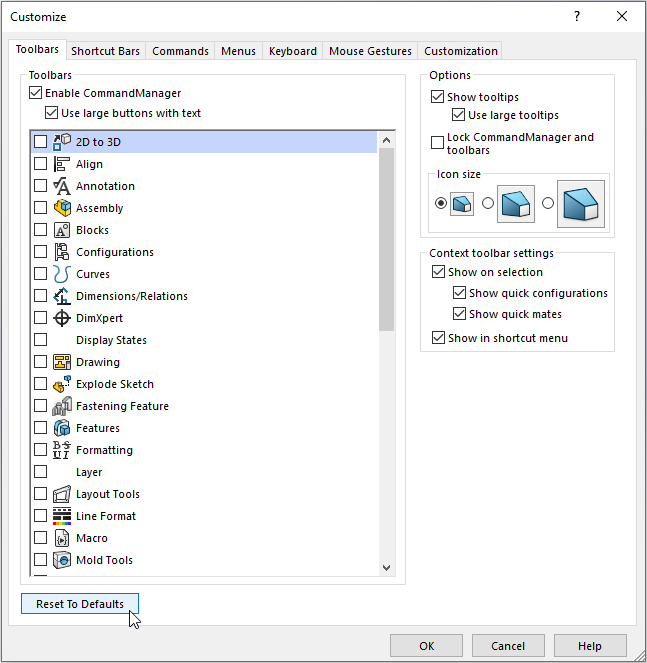

Within SOLIDWORKS, click "Tools" > "Customize" > "Reset to Defaults". Alternatively, Right-click in a blank space of the command manager or at the top of the SOLIDWORKS window and select "Customize" > "Toolbars" > "Reset to Defaults". Confirm the reset by selecting Yes.

Solution 3: Reset the SolidWorks Registry

Reset/Clear User Registry Settings. The following link shows steps that are also a good solution for instances where the user interface is not working properly. It generally takes about 2-5 minutes to complete.

Article Link: Clearing your User Registry Settings – Hawk Ridge Systems

For further technical support, please contact Hawk Ridge Systems at 877.266.4469 for the U.S. or 866.587.6803 for Canada and support@hawkridgesys.com.
