CAMWorks Legacy Machine Simulation Image Quality

Glenn Munger

There are instances when the part image quality is poor in the CAMWorks Legacy Machine Simulation application. The image may look "blocky" and not very detailed as compared to when displayed in the CAMWorks environment.

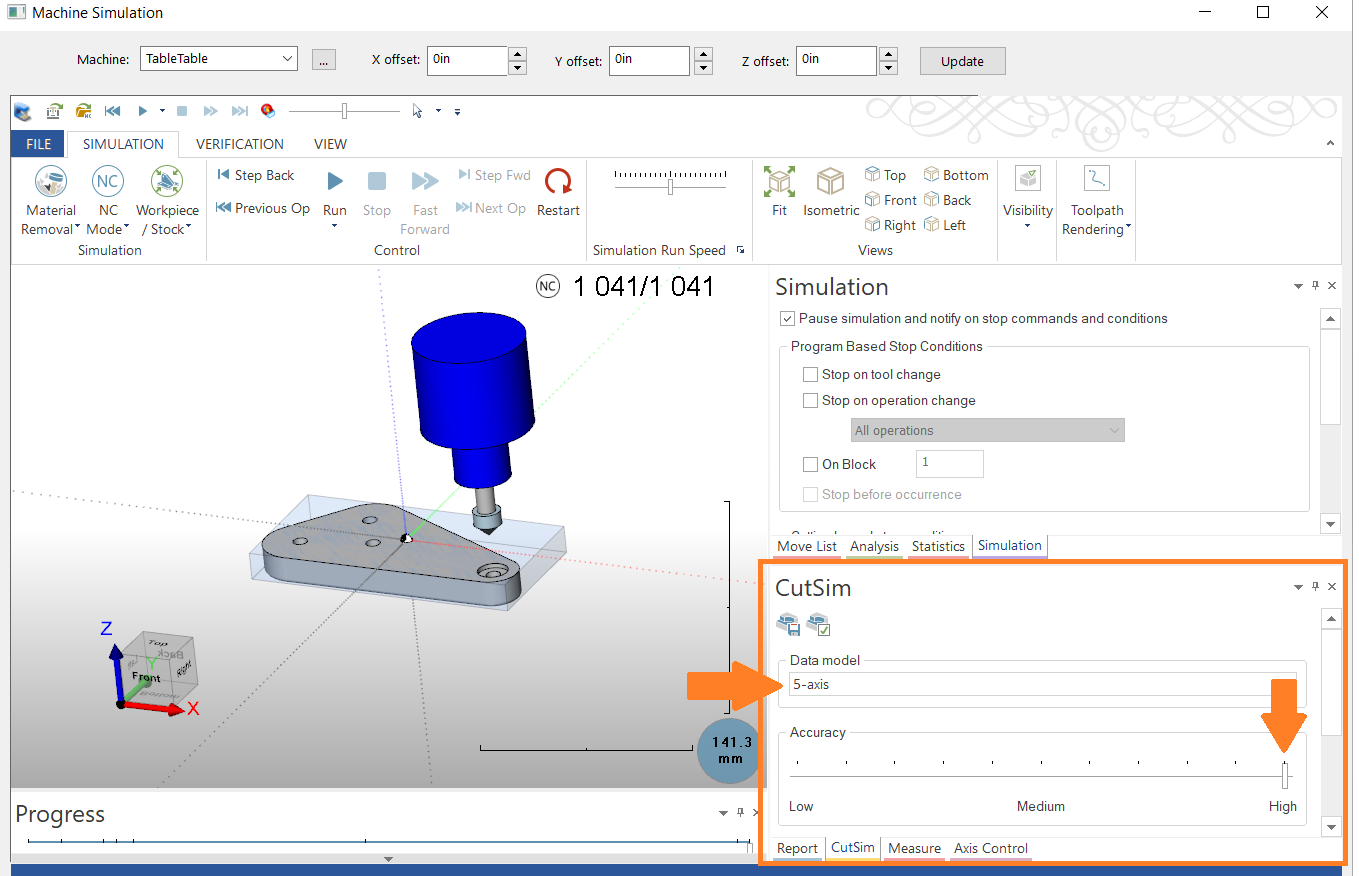

 The solution is to edit the parameters in the CutSim options:

  1. Set the Data model option to 5-axis.
  2. Adjust the Accuracy to a higher value by dragging the slide bar toward High.
  3. Re-run the part simulation with the new settings.


The setting may revert during future installs or even between sessions, so it is good practice to check this setting whenever the part display becomes distorted.
