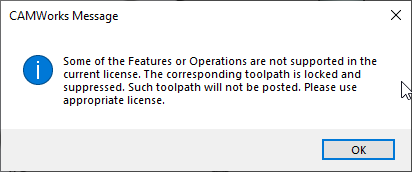

The following cases can trigger the error message window above:
1. CAMWorks was recently installed on a client computer.
2. A new Windows user profile was created on a computer that has CAMWorks.
3. A major Windows update occurred on a computer that has CAMWorks.
4. An end user manually changed the License Info settings and they no longer match the needs of the part/assembly file.
5. Other users are using the modules and reducing the count to Zero.
To resolve this access the CAMWorks License Info menu and select the necessary modules:
Note: For case #5 the only resolution is to communicate with the other end users and have one of them release a module they are in possession of. A client machine in need of a module can not forcibly release a module from another client machine.
How to Access the Menu in SOLIDWORKS

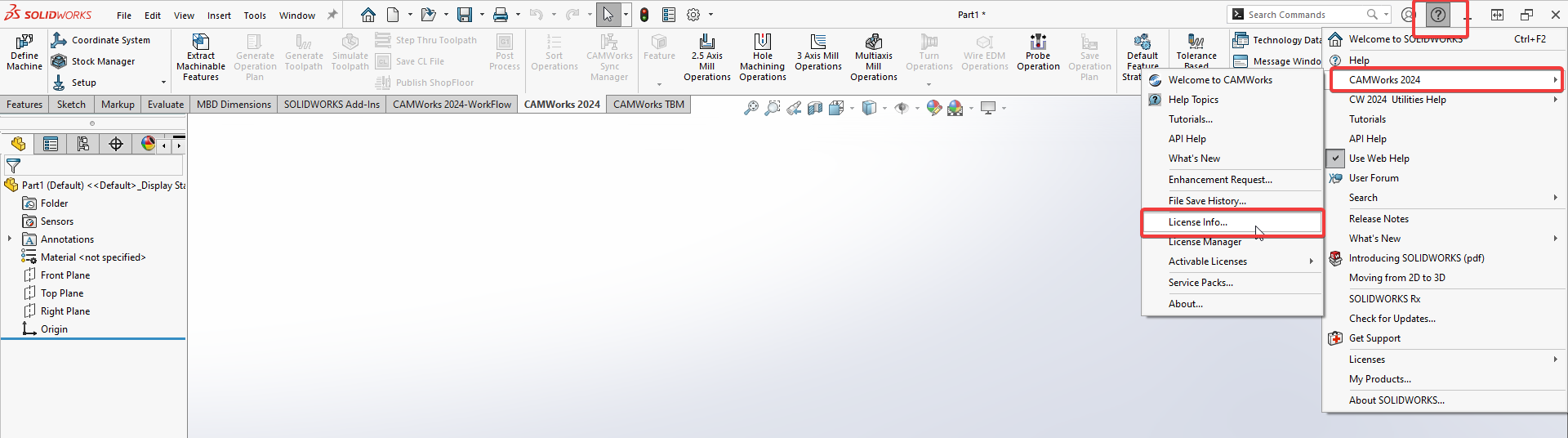

- Within SOLIDWORKS select the Help icon CAMWorks 20XX>License Info.
-

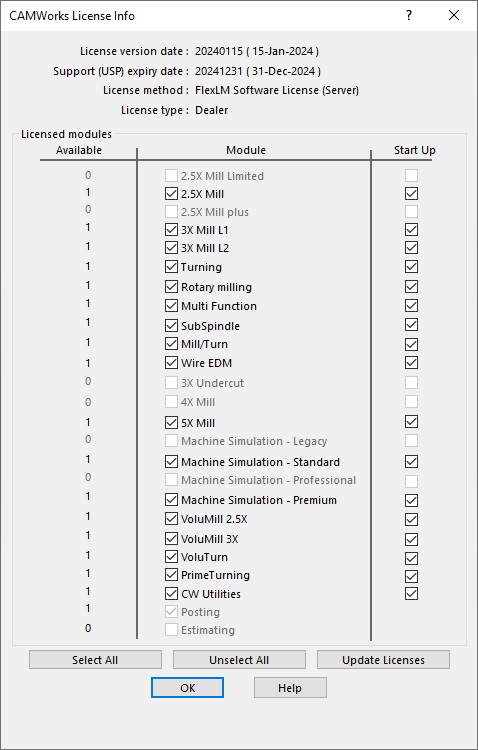

With the CAMWorks License Info menu open you can now select the needed modules. The Start Up column allows you to adjust which modules are selected automatically when the CAMWorks add-in loads. The Module column is where you can manually enable or disable modules in the current session.
Once the changes are made select the Update Licenses button then select OK to close the menu.
How to Access the Menu in CAMWorks Solids

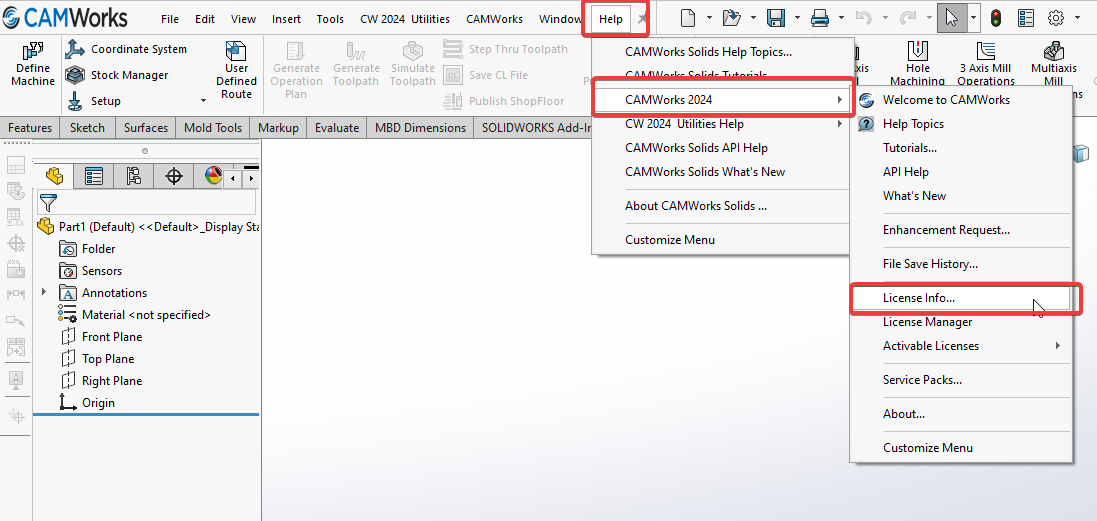

- Within CAMWorks Solids select the Help pull down>CAMWorks 20XX>LIcense Info.
-
With the CAMWorks License Info menu open you can now select the needed modules. The Start Up column allows you to adjust which modules are selected automatically when the CAMWorks add-in loads. The Module column is where you can manually enable or disable modules in the current session.
Once the changes are made select the Update Licenses button then select OK to close the menu.
If these steps do not resolve the issue, or if you have any further questions that we can assist you with, please feel free to contact Hawk Ridge Systems Technical Support at: support@hawkridgesys.com
