Drawings Of Specific Bodies Of A Multibody Part

Kevin Chow

Parts can have multiple bodies within them and the drawing sometimes only requires a few of those bodies.

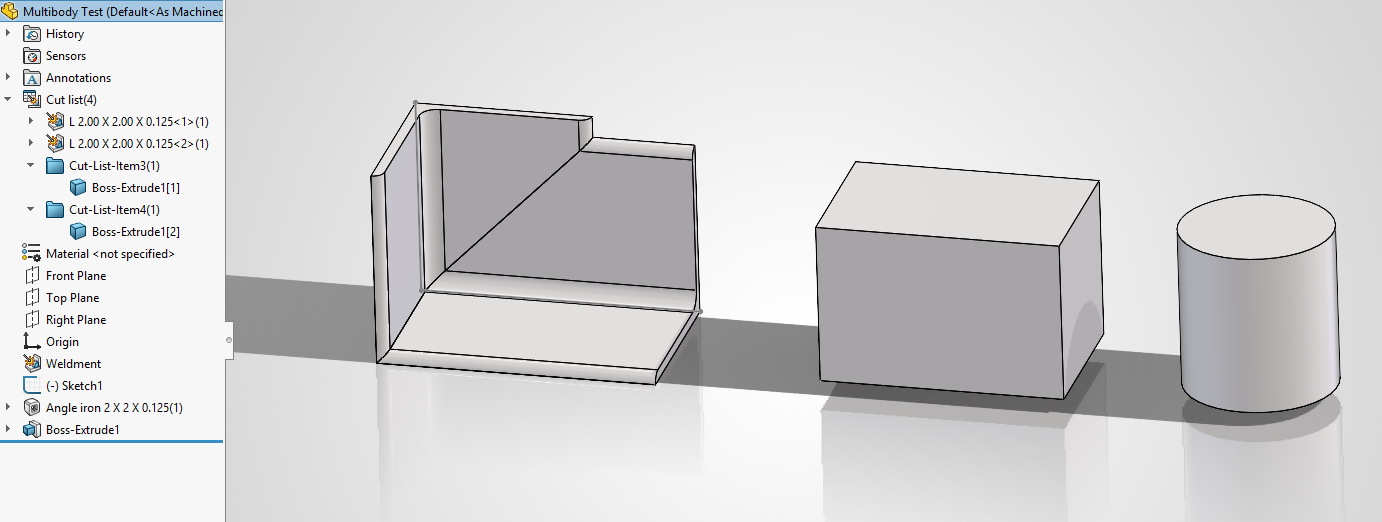

The best way to create these drawings is to use the "Select Bodies" option of the drawing view.  Please see the steps below on how to do this.  In the example below, there are two structural members and two boss extrudes, which make up 4 bodies total.

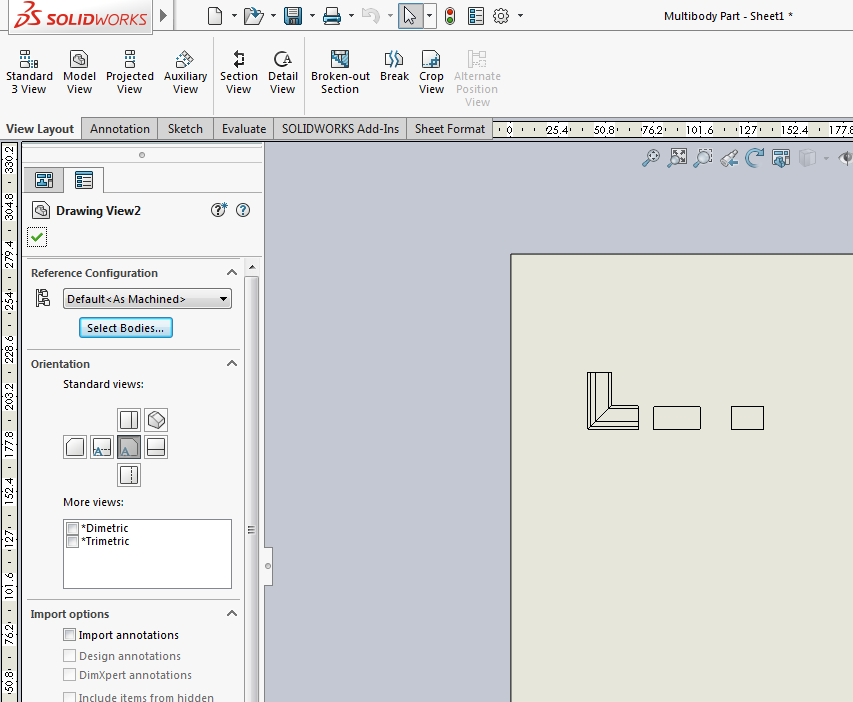

If a drawing view was created of this part, all of the bodies will show up.


However, we may only want to create a drawing of a few of the bodies.  To do this:

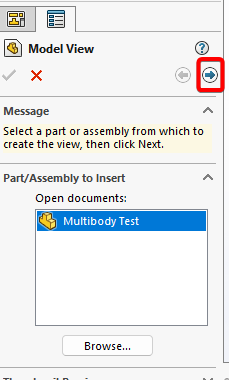

1. Select Model View to start a drawing view, then click the next arrow.

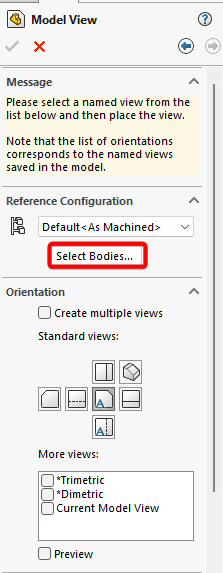

2. Click on the select bodies button.

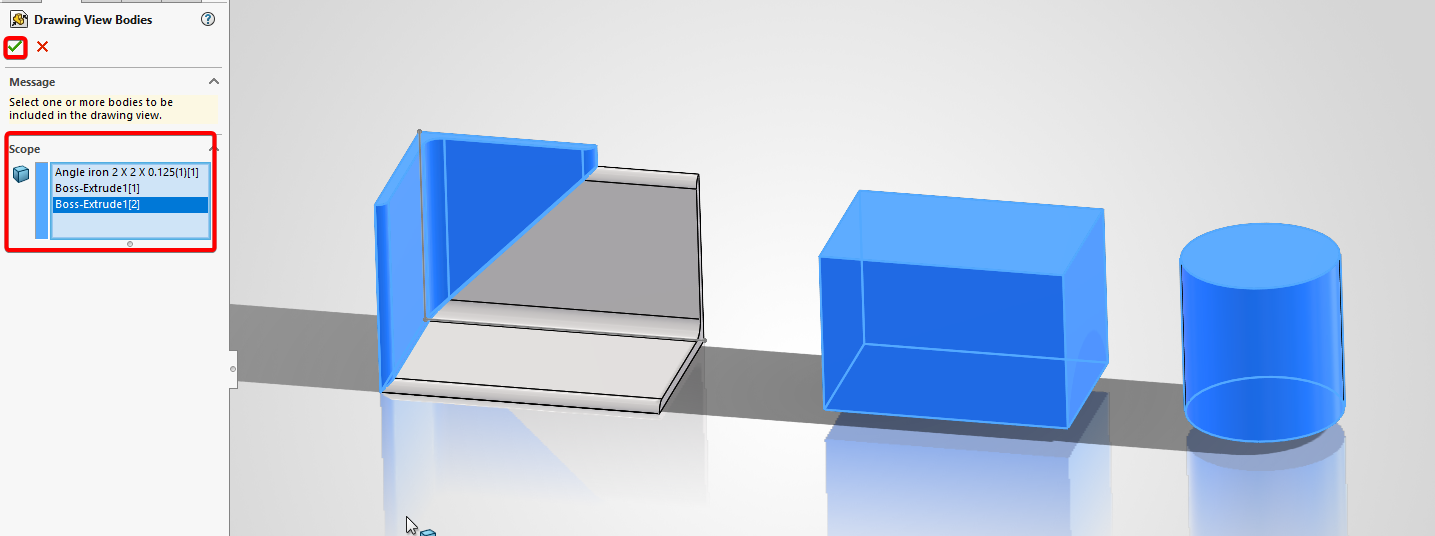

3. Select the bodies to be used.

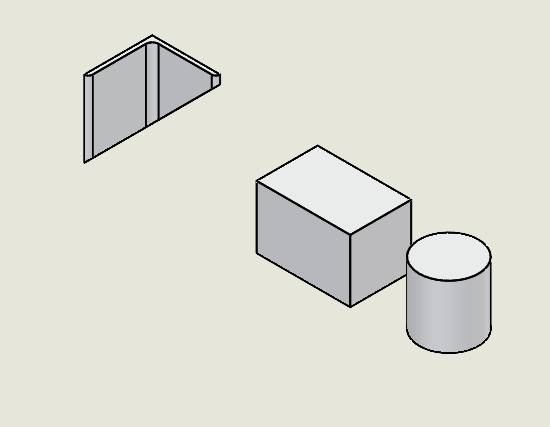

4. The drawing views will only show the select bodies.



For further assistance, please contact our HawkSupport team at 877-266-4469(US) or 866-587-6803(Canada) and support@hawkridgesys.com.
