Curves Appear As Line Segments

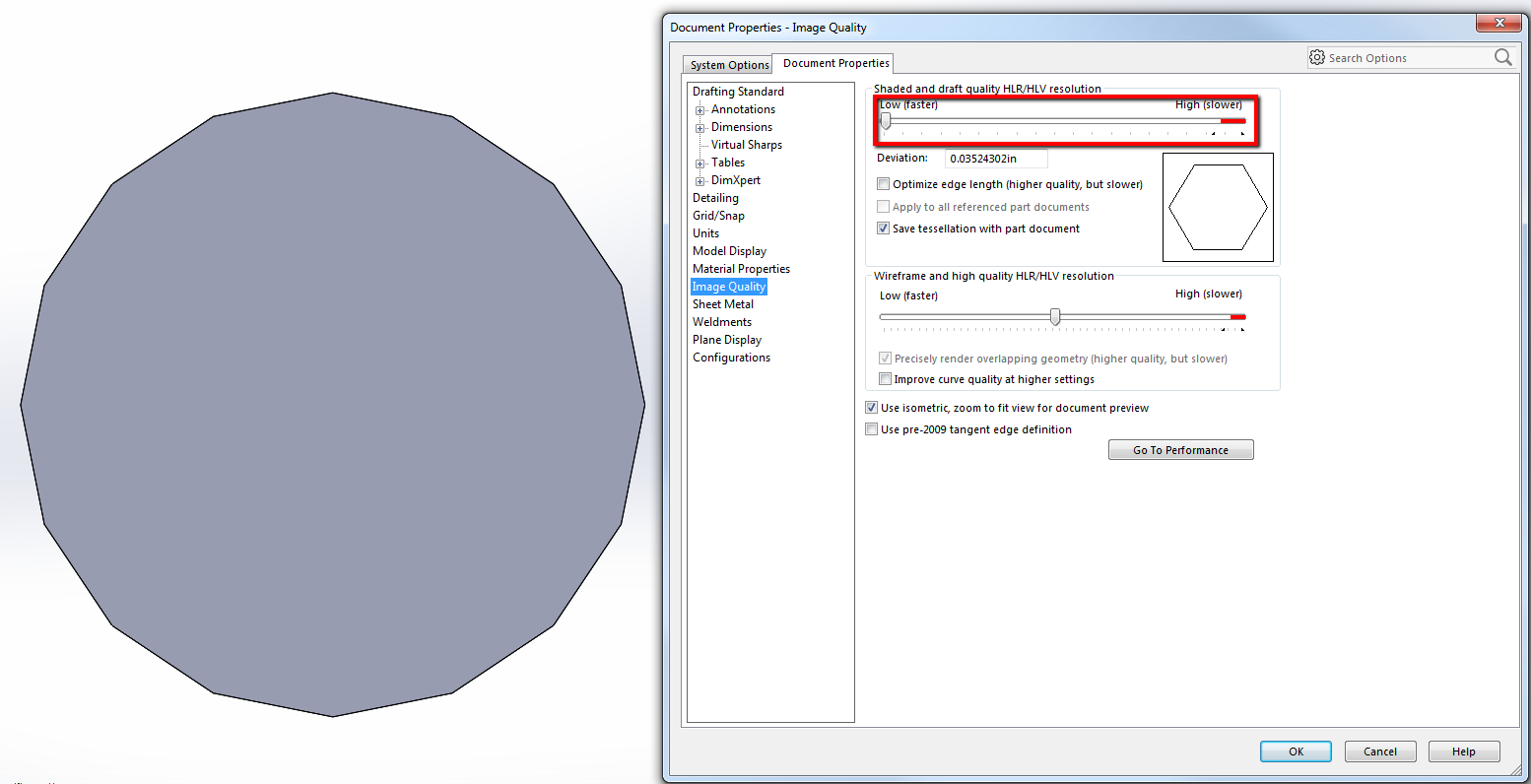

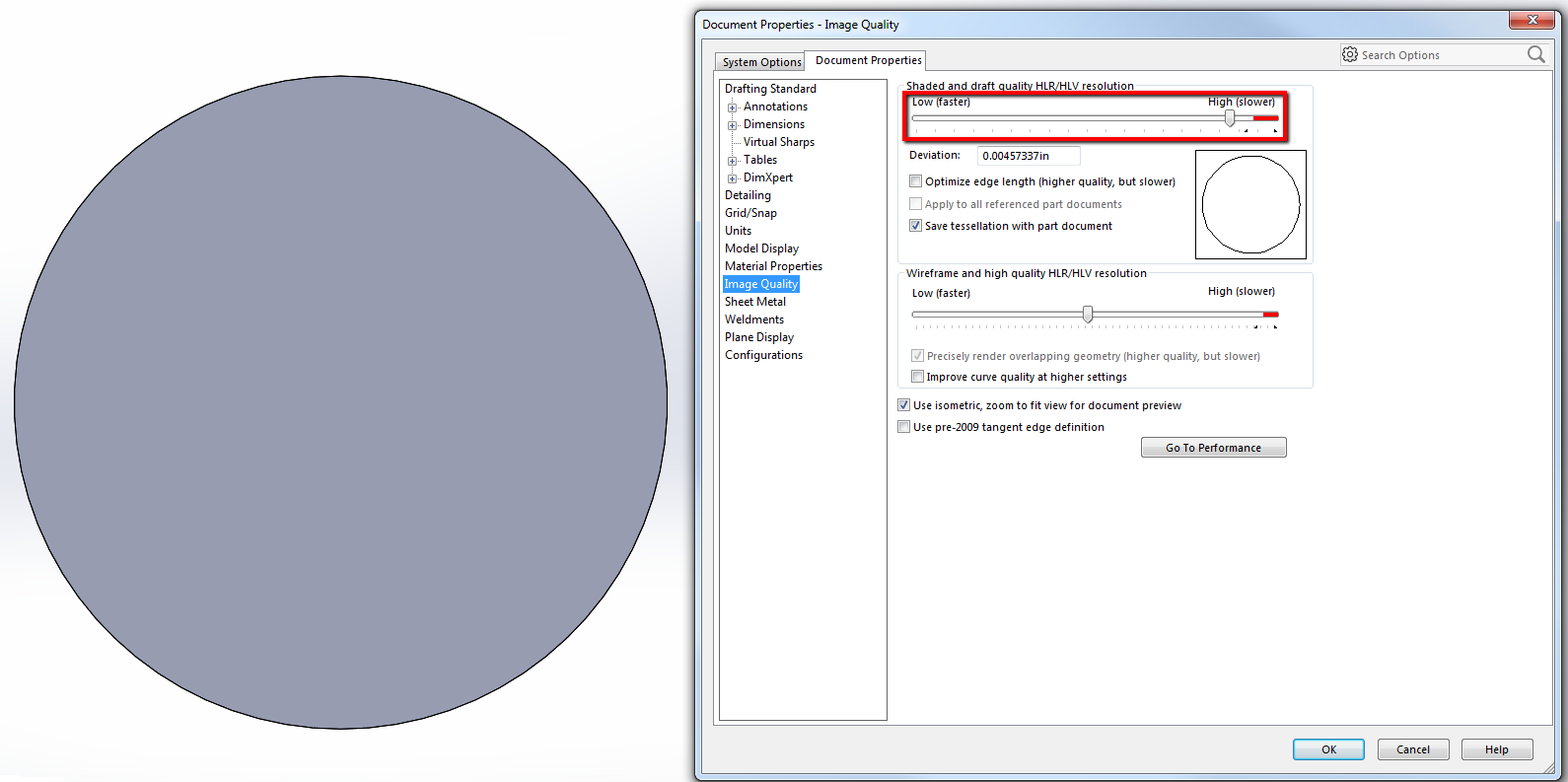

Sometimes, curved edges will look like they are comprised of a lot of line segments but this is usually related to the graphical display of the curved edge. Even though it looks jagged, the actual model will still be a smooth curve.  To change the display of curved edges, go to Tools->Options->Document Properties tab->Image Quality and modify the slider for the option "Shaded and draft quality HLR/HLV resolution".

NOTE: Increasing the resolution can have an impact on performance.
