Changing origin circle size for DIN Ordinate Dimensions

Avatar
Stephanie Rodas

Starting in 2017, users can now control the size of the origin circle for DIN Ordinate Dimensions.

Users can now change the size of the Ordinate dimensions' origin circle when using DIN standard.

beforeDINO.png   AfterDINO.png

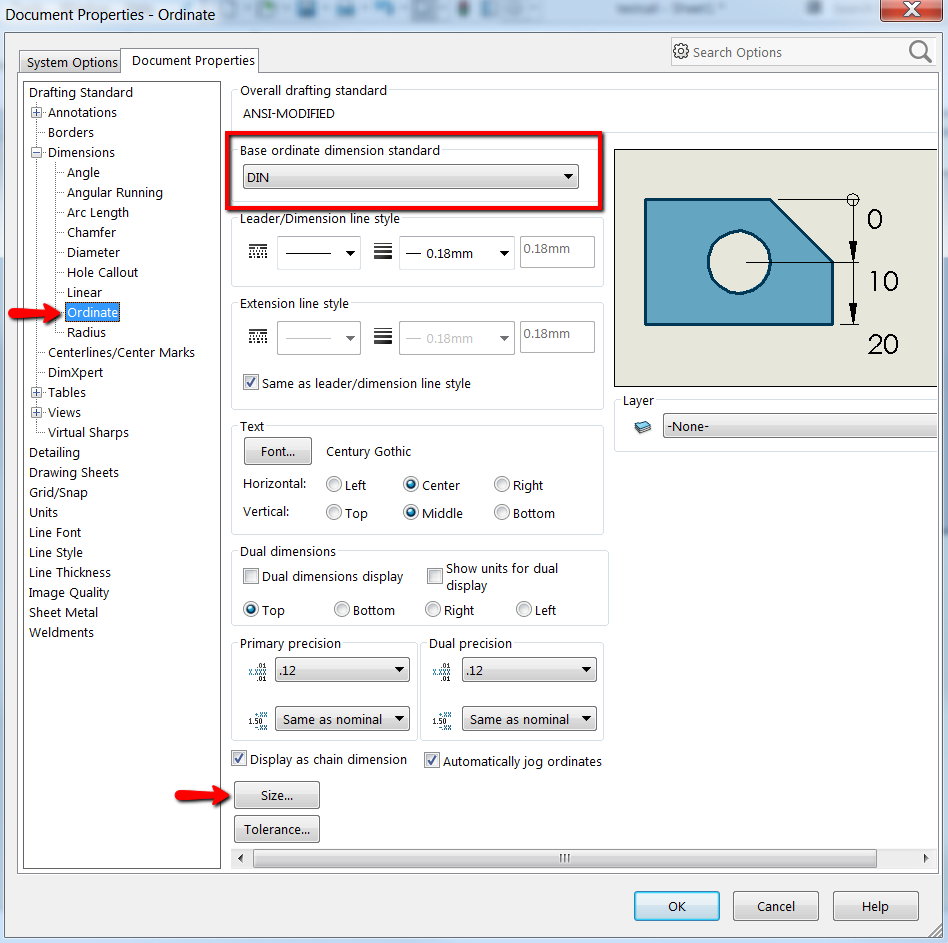

This can be done by navigating to Tools > Options > Document Properties > Dimensions > Ordinate. Here you will want to make sure you are using the correct standard before proceeding. Once the standard is set to DIN, the 'Size' option at the bottom of the page will become available.


Select the 'Size' button and enter the circle diameter.


The diameter of the circle will then update in the drawing to reflect this change.



If you have any questions regarding the information above or are unable to troubleshoot this issue, please contact Hawk Ridge Systems Technical Support at 1-877-266-4469 (US), 1-866-587-6803(CAN), or support@hawkridgesys.com.
