Section View in model can not be moved

Stephanie Rodas

This article describes the issue where the Section View plane can not be moved using the arrows in the graphics area.

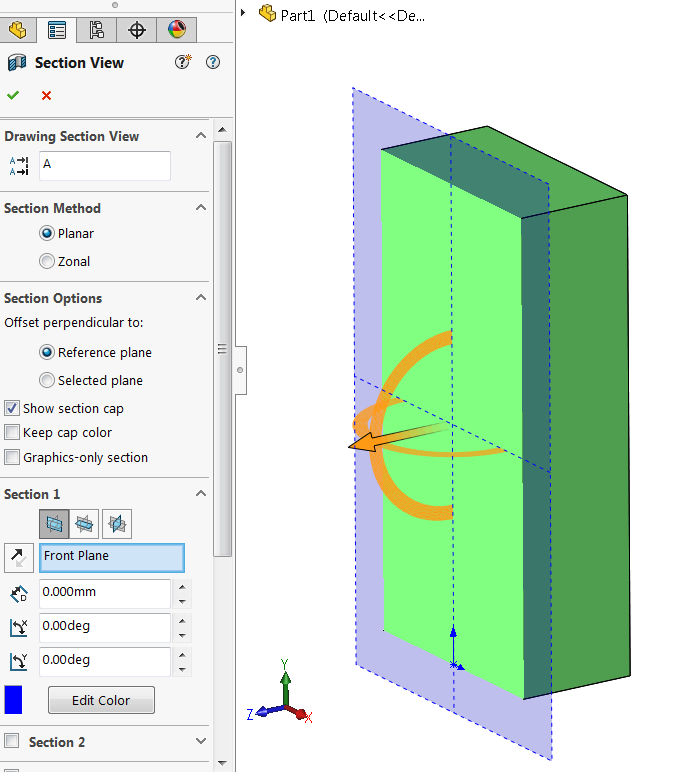

Users may experience an issue where they are not able to move the Section View plane location by dragging the arrows in the graphics area. This is due to the precision that is defined in System Options under Spin Box Increments.

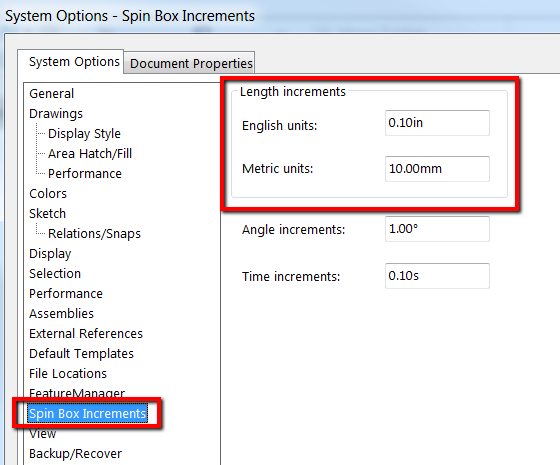

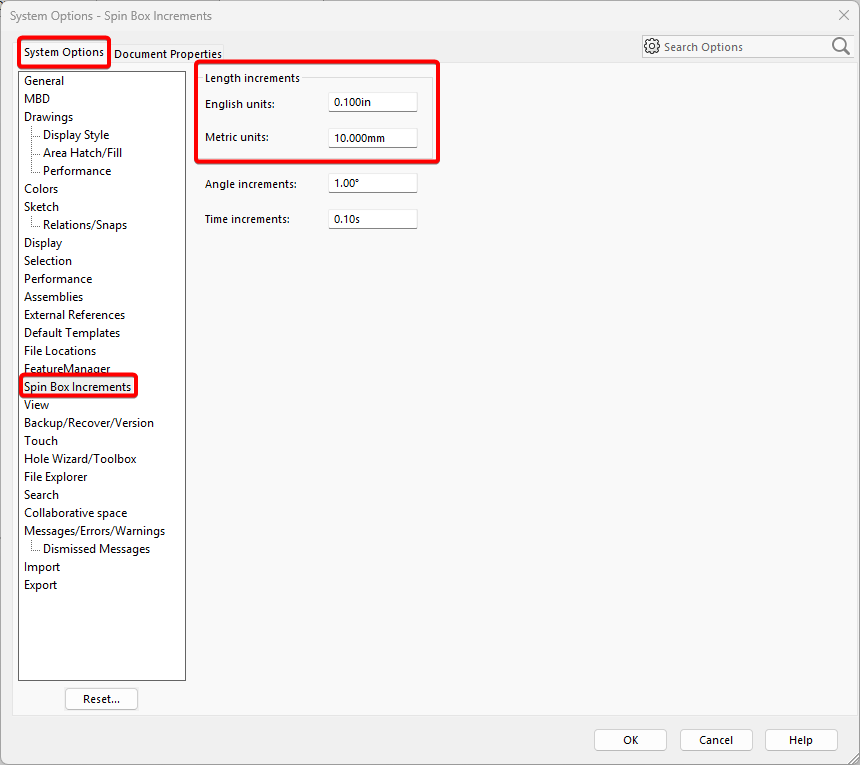

To resolve this issue, navigate to Tools>Options>System Options>Spin Box Increments and lower the value for the Length increments.




For smaller models, you may want to lower this value so that the section plane moves by smaller increments.
