Problem
This article describes how to export search results from the SOLIDWORKS PDM Vault View. This feature was first released in PDM 2018. Prior to PDM 2018, users had to go to the Search Tool in the Vault View to export results. This requires having Microsoft Excel installed.
Solution
- Open the Vault View
- Create a search as desired

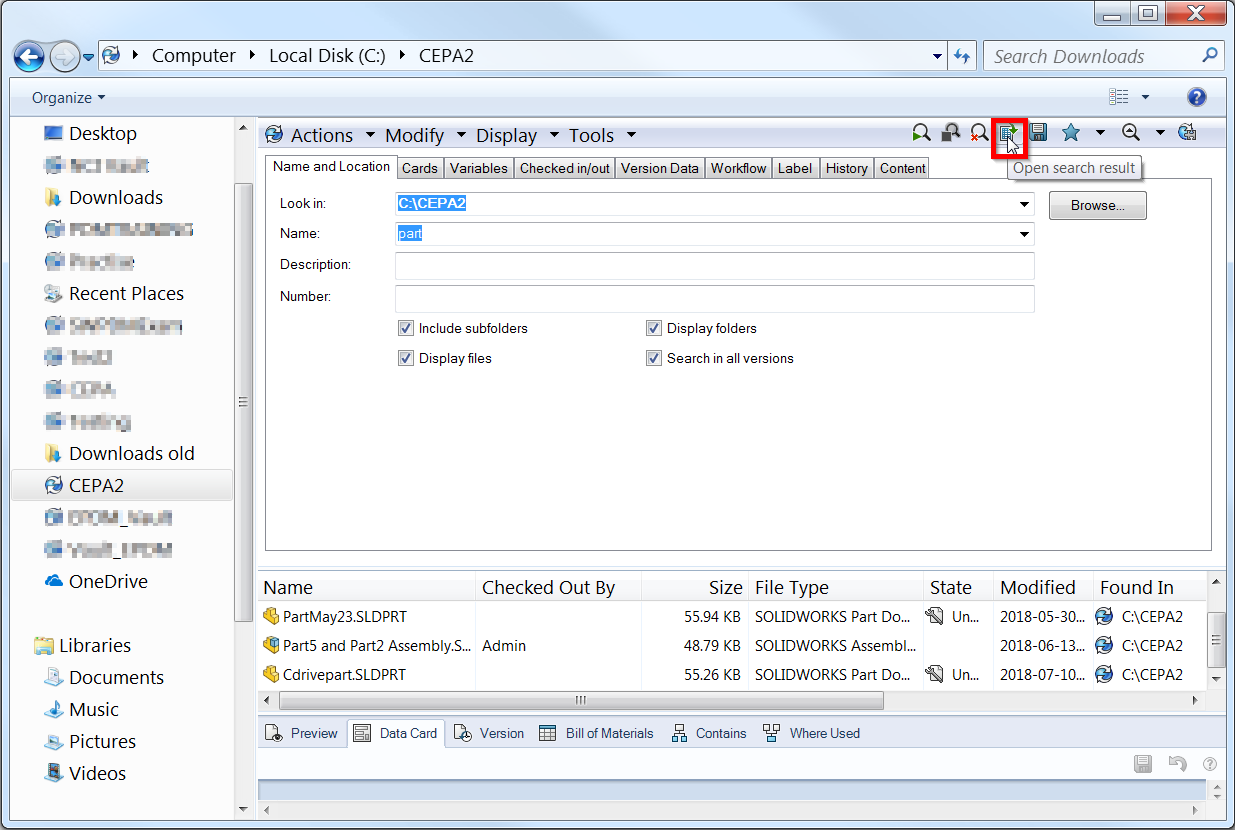

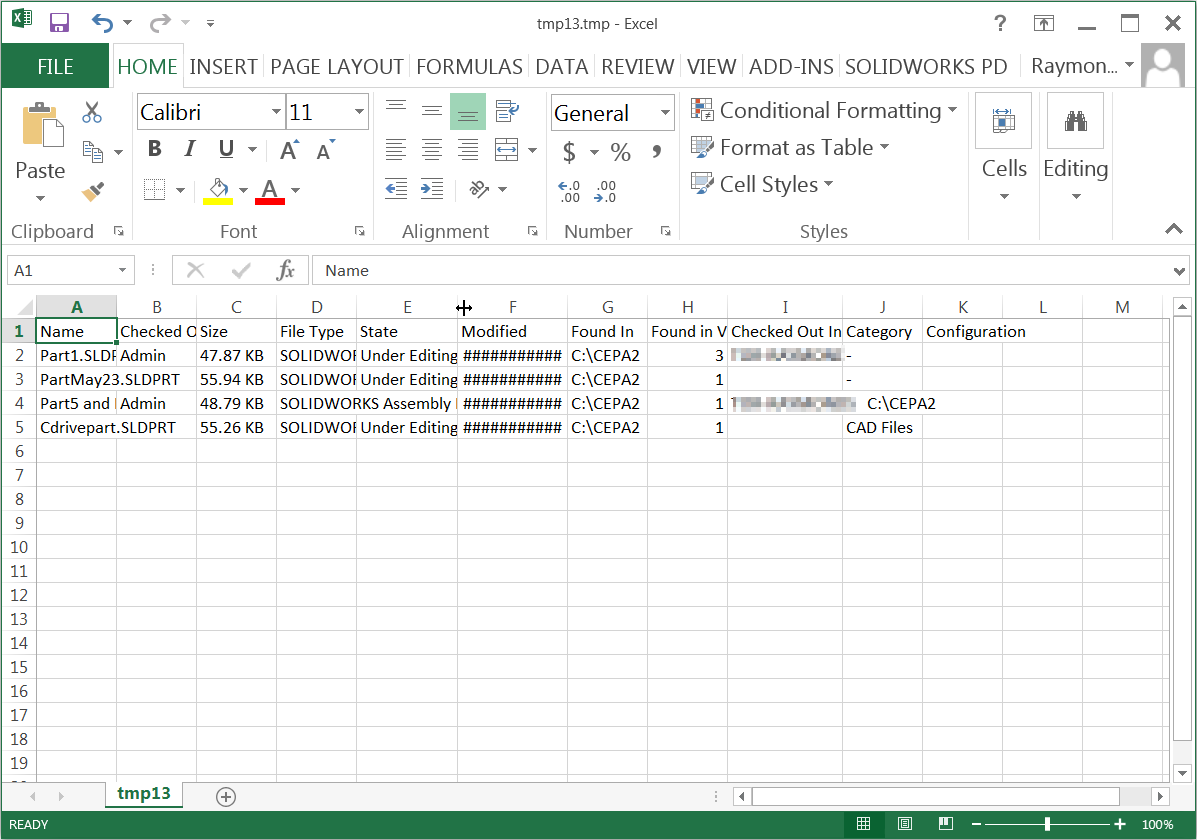

- Click the "Open Search Result" button at the top right, which will open the result in Microsoft Excel as shown below

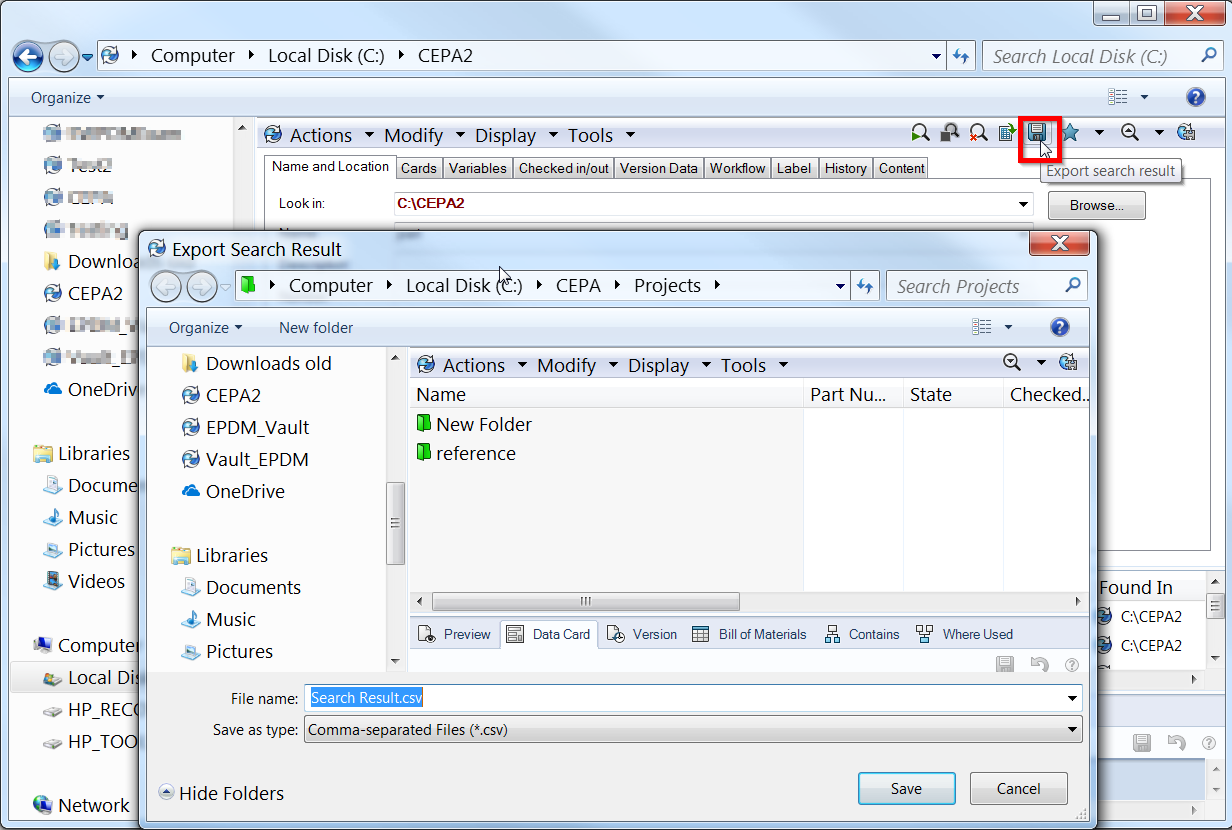

- Clicking on "Export Search Result", the icon immediately to the right of "Open Search Result", will launch a dialog to save the SOLIDWORKS PDM export search result to a .csv file. This file can be imported into Excel.
For additional support, existing customers can submit a ticket or new customers can contact Hawk Ridge Systems.
