How To Fully Embed an Image into a DraftSight File

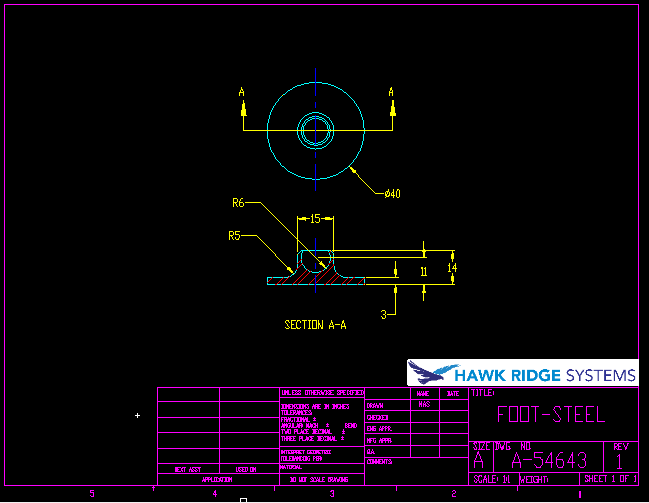

This article goes over how to embed an image into a DraftSight Drawing without having an external reference to the image file.

Please follow the steps here to allow the image to not have an external reference.

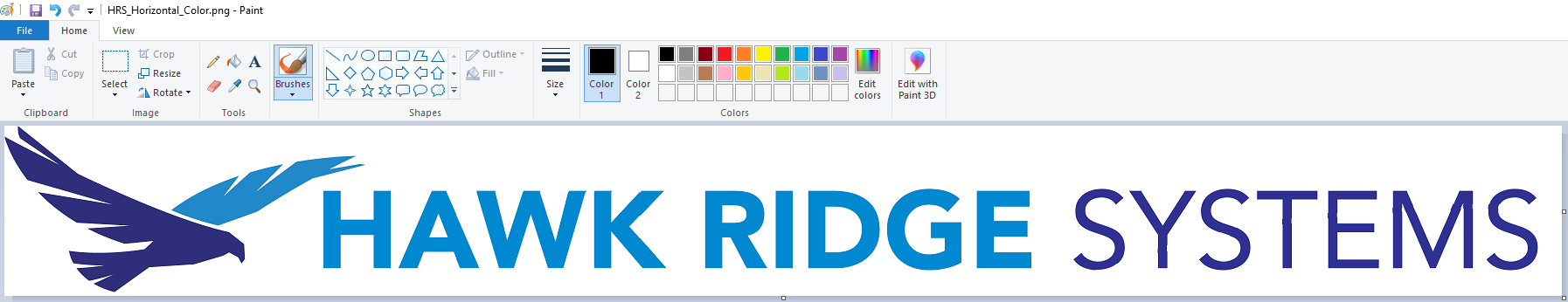

  1. Edit the image in Microsoft Paint
  2. In Microsoft Paint, select the image using CTRL+A  on the keyboard.
  3. Once the image is all selected, Copy the image use CTRL+C. This places the image on the clip board correctly.
  4. Open the DraftSight Drawing

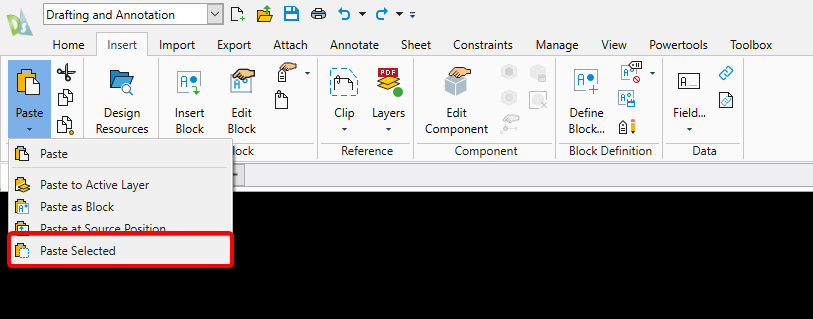

  5. Select Insert menu>Paste>Paste Selected

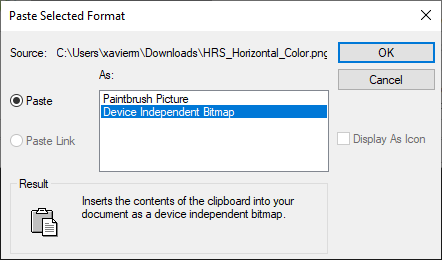

  6. Choose the Device Independent Bitmap and OK
  7. Select and drag a window with the mouse cursor for placement and size of the image.

For further technical support, please contact Hawk Ridge Systems at 877.266.4469 for the U.S. or 866.587.6803 for Canada and support@hawkridgesys.com.
