Warning: The Current SolidWorks Task Add-in is unsupported

When selecting a file in the PDM vault a user may get a warning that the current task add-in is unsupported. This may occur after upgrading the PDM Server and client. The task add-in may also be enabled on the user's machine. Within the PDM Administration tool; the task add-ins are already upgraded to match the current PDM server version.


Verifying the current task add-in version

The task add-in used by the PDM client machine may be corrupted or the wrong version. Confirming the task add-in version on the PDM client can be done through the Task Host Configuration manager. After the Task Host Configuration manager loads it will show if a task add-in is enabled for the selected vault.

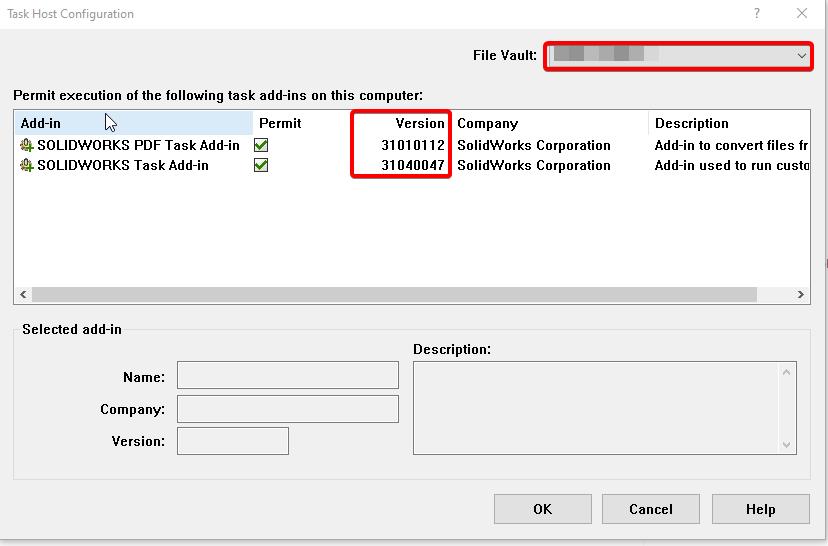

1. Navigate to the Windows task tray and right-click the blue/white icon for PDM. Select 'Task Host' from the menu option.


2. Select the PDM vault from the drop-down in the upper right-hand corner of the Task Host Configuration menu. The format of the version number of the task add-in is as follows:

YYYY - Year Version (20XX)

SS - Service Pack (SP-XX)

BBBB - Build Number


3. After verifying the task add-in version go to the next section of this document. If the task add-in is not current proceed to step 4 about upgrading the task add-ins.

4. If the PDM task add-in is not current then follow the document: Updating SOLIDWORKS PDM Add-ins – Hawk Ridge Systems Support

Renaming the PDM Plugins Cache Folder

The PDM client stores plugins in a cache folder located in the hidden AppData folder directory in Windows. This cache folder can become corrupt and cause warnings regarding the add-in and impact functionality. The AppData folder can be made visible by selecting the 'Hidden Items' check box on the View tab in Windows File Explorer.


1. Navigate to the c:\users\<username>\AppData\Local\SolidWorks\SOLIDWORKS PDM directory. PDM_PluginsFolder.jpg

2. Select the plugins folder and rename it to Plugins_old.

3. Log off from the PDM vault and then log back in.

4. Verify if any more warnings occur regarding the task add-in when navigating the PDM vault.


For further technical support, please contact Hawk Ridge Systems at 877.266.4469 for the U.S. or 866.587.6803 for Canada and support@hawkridgesys.com
