Restoring Missing Property Manager Tab

Zachary Jagla
Updated

Problem

This article describes the process of finding and adding back a missing Property Manager Tab. Sometimes this tab can be dragged off-screen and appear missing at the top of your Feature Manager Tree.

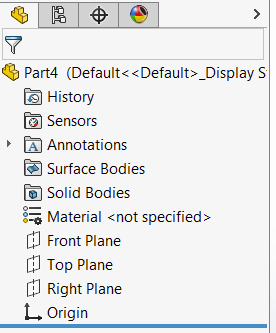

Example of Property Manager Tab missing

Solution

  1. Open SOLIDWORKS

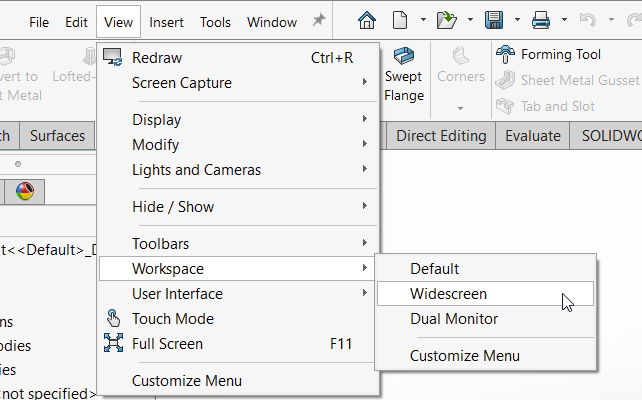

  2. Go to View > Workspace and check "Widescreen". This will adjust the size of the SOLIDWORKS window as if it were on a larger monitor, which can reveal windows possibly hidden off-screen on the default display.

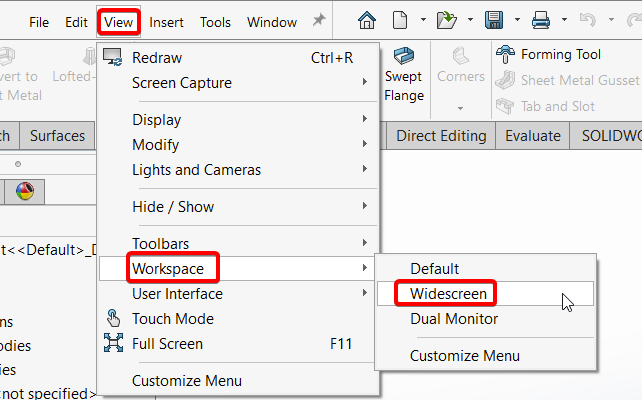

    Go to View Workspace and check Widescreen

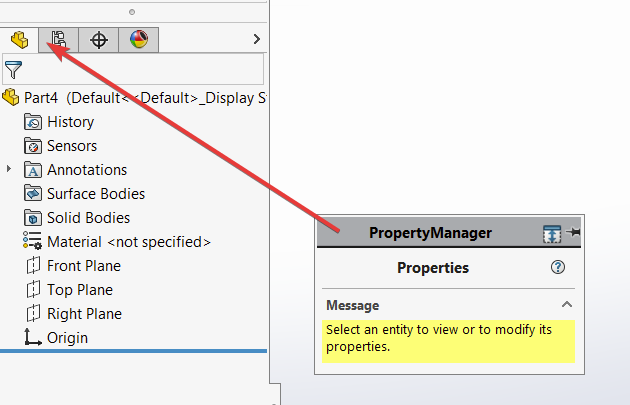

  3. Drag the Property Manager Tab and reattach it to the top of the Feature Tree

    Drag the Property Manager Tab and reattach it to the top of the Feature Tree

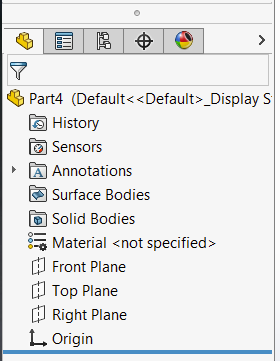

  4. Once the Property Manager Tab has been restored, go back to View > Workspace, and select "default display" to exit widescreen mode

For additional support, existing customers can submit a ticket or new customers can contact Hawk Ridge Systems.
