Requesting A Document Manager API License Key

The SOLIDWORKS Document Manager API requires a license key that is only available via the SOLIDWORKS customer portal to SOLIDWORKS customers who are currently under subscription. Each user of SOLIDWORKS Document Manager API must have a license key.

Existing users must request new SOLIDWORKS Document Manager API license keys beginning with SOLIDWORKS Document Manager API 2015 FCS and renew their SOLIDWORKS Document Manager API license keys when installing any new major release of SOLIDWORKS or the SOLIDWORKS Document Manger API.

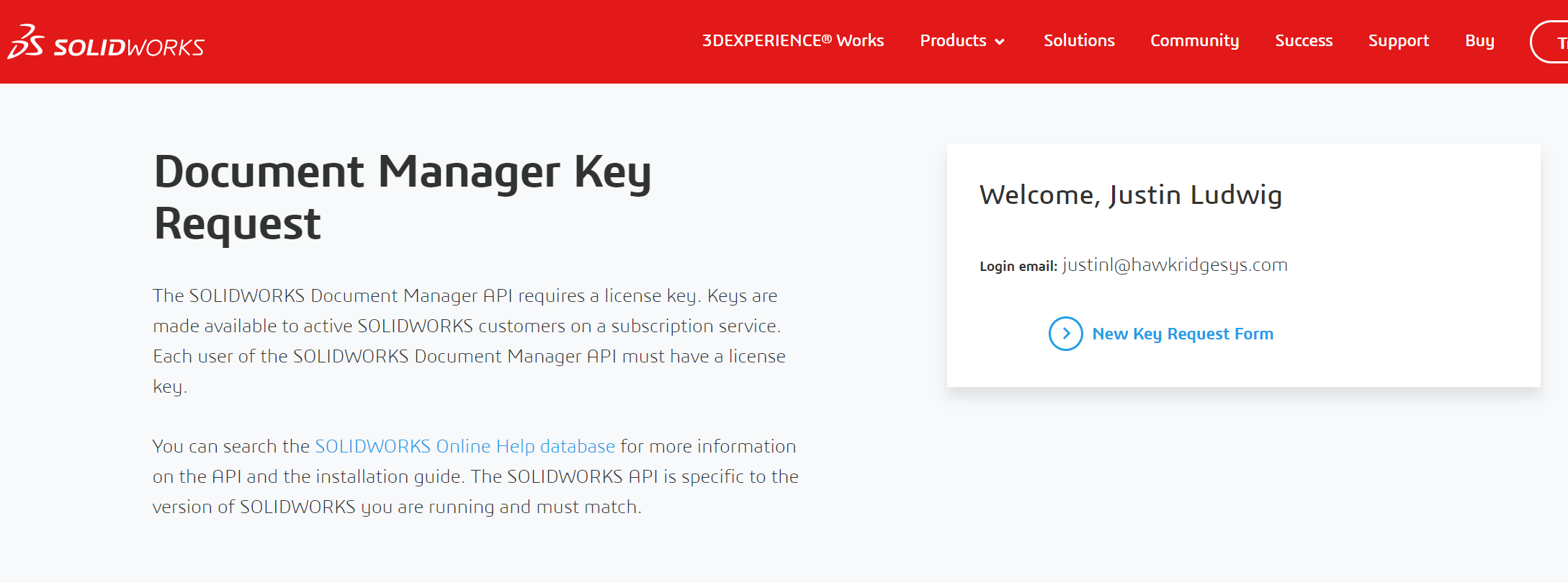

1. Browse to https://www.solidworks.com/support/subscription/key-request/ and log in with your SOLIDWORKS or 3D Experience login.

2. Click on New Key Request Form on the right hand side and complete the fields.

3. Check the box to agree to the terms and click Submit.

A SOLIDWORKS Document Manager API license key is emailed to you upon approval of your request. Please check SOLIDWORKS online help for version compatibility information.

Summary of License Types

When requesting or renewing a SOLIDWORKS Document Manager API license key, you are presented with a dialog containing a list of check boxes showing the categories of functionality that a SOLIDWORKS Document Manager API license key controls. You can select more than one category.

Basic: All interfaces, methods, and properties except for those listed below
Previews: Preview and stream methods and properties on all ISwDMConfiguration, ISwDMDocument, and ISwDMSheet interfaces
DimXpert: DimXpert methods and properties on all ISwDMConfiguration and all DimXpert-related interfaces
Geometry Streams: Preview, stream, and imported body methods and properties on all ISwDMConfiguration interfaces
XML Streams: XML stream methods on all ISwDMDocument interfaces
Tesselation: Display List DLL (previously called the Display List Sample); although not a component of the SOLIDWORKS Document Manager API, its license key controls access to the Display List DLL

For further assistance, please contact our Hawk Ridge Support team at 877-266-4469(US) or 866-587-6803(Canada) and support@hawkridgesys.com.
