Menu Bar Missing from PDM Vault View

Raymond Scarlett

This article walks through the steps necessary to restore your missing PDM Vault View menu bar.

As shown in the illustration below, the Actions, Modify, Display and Tools menu options are missing.




The menu bar can be made accessible by following the steps listed below.

1. Open SOLIDWORKS PDM Administration Tool.

2. Log into the Vault for which you want to restore the menu bar. If you are not logging in as the user with the issue, login as an administrator.

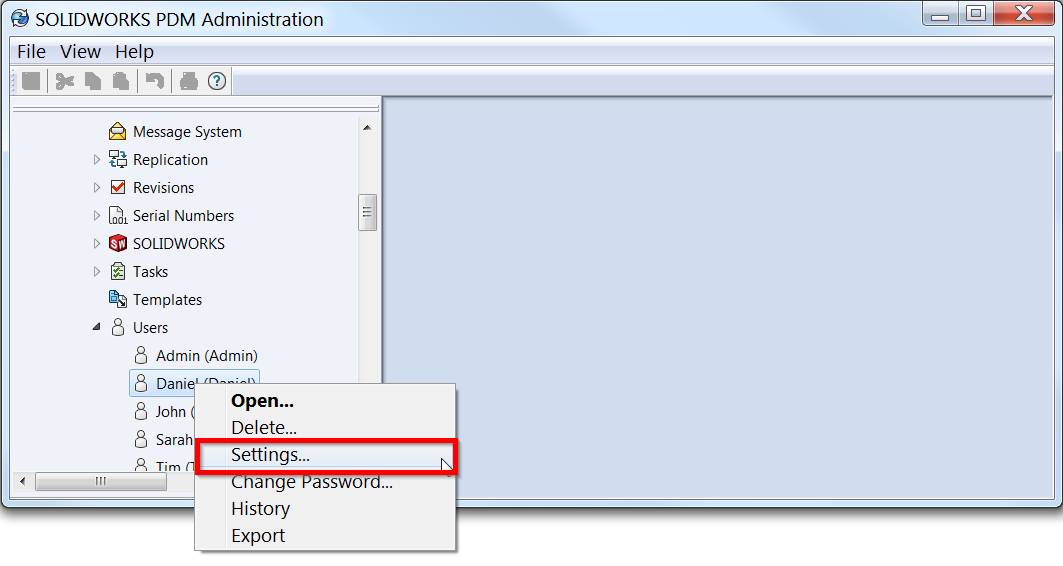

3. Right click on the username with the issue and select Settings as illustrated below.

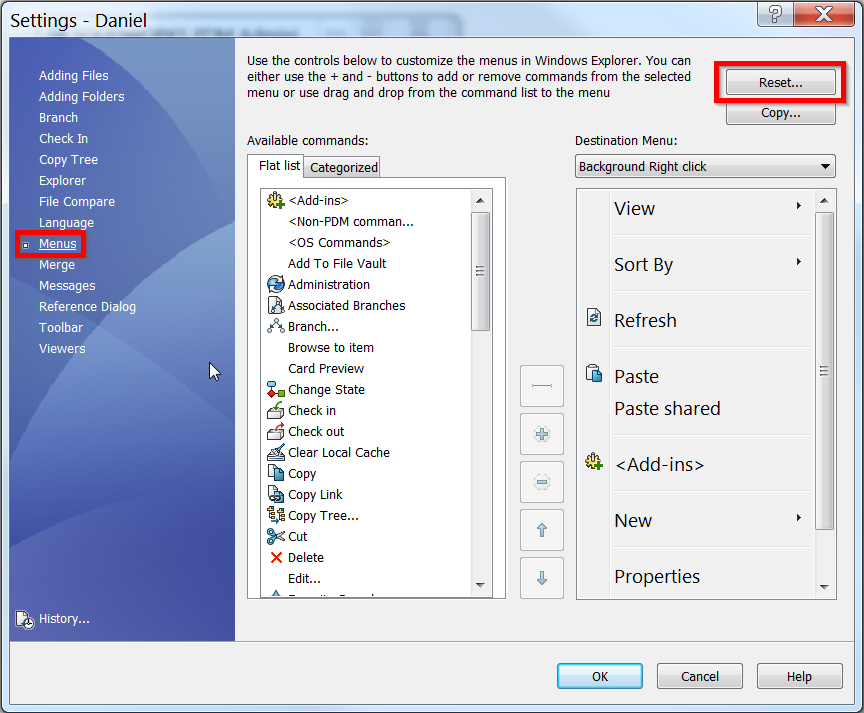

In the Setting dialog box click on Menus, then Reset as illustrated below. If you had a customized menu you will need to customize again.


After resetting your menu it should appear as shown below.






If you are not able to perform these steps or you have any questions, please contact Hawk Ridge Systems at support@hawkridgesys.com.
