Creating an Isometric Section View in a Drawing

David Severud
Updated

Problem

This article shows how to create an isometric section view in a drawing. Isometric section views are not directly available in the drawing view palette.

Solution

  1. Insert a Parent View from the View Palette into the drawing

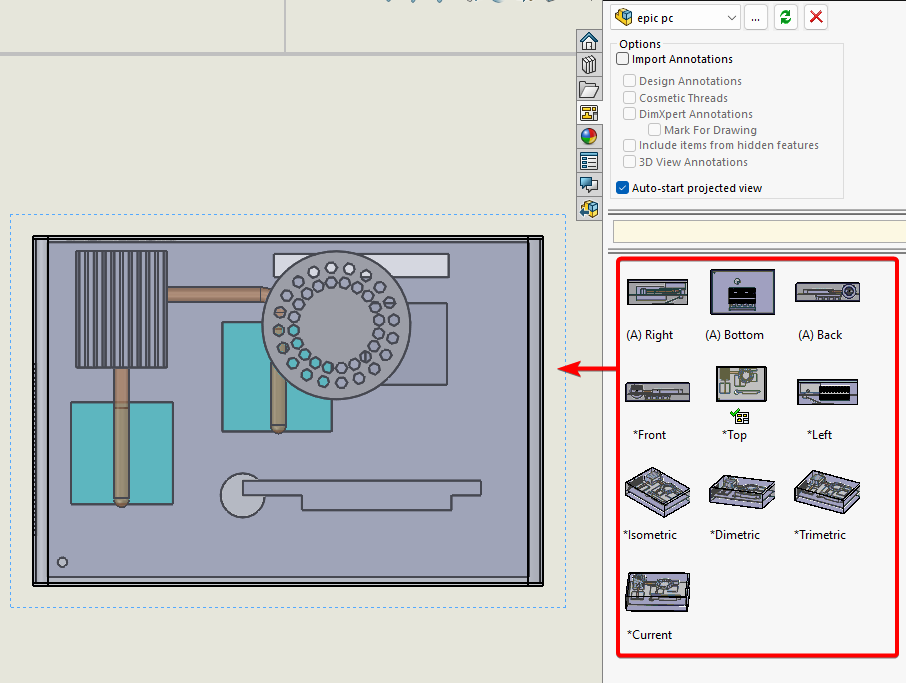

    Insert Parent View from View Palette
  2. Create a 2D Section View from this View with the desired Section Cutting Line

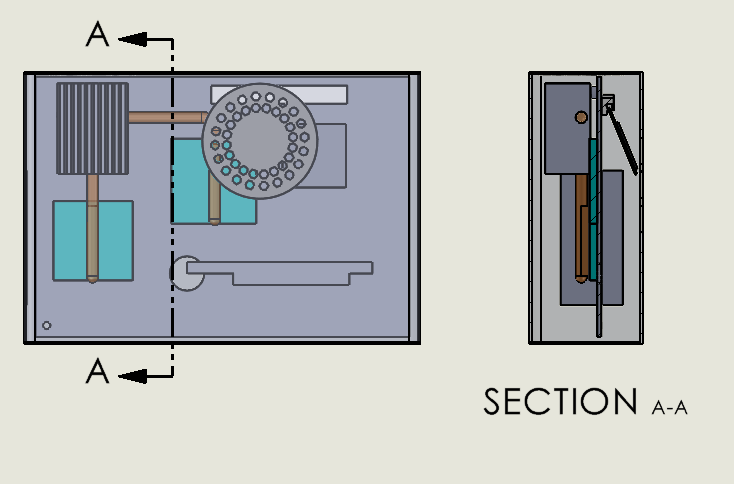

    Create 2D Setion View with desirec Cutting Line

  3. Right-click on the Section view and select "isometric section view"

    select isometric section view from right click options
  4. Move the view around as desired to place it

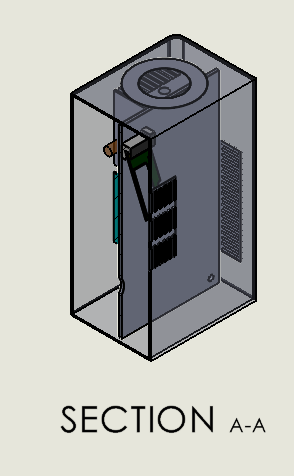

Example Isometric Section View
