How to Enable/Disable Hidden Drawing View Marker

When you hide a drawing view, you may see a large X across the area the view was just shown in. There is an option that disables the X from being displayed.

Toggle Drawing View Marker

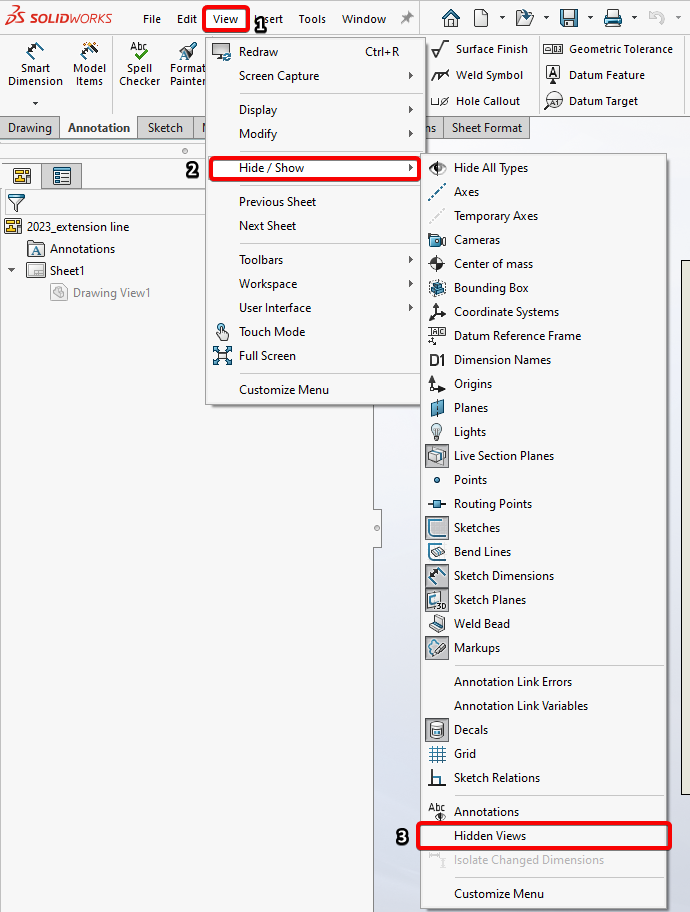

  1. In the drawing document, go to View > Hide/Show. Click on "Hidden Views" to toggle the marker on or offShows the drop-down menu for View and the selectiong for Hidden Views
  2. If you do now see "Hidden Views", try "Customize Menu" and see if the option is unchecked for this menu. If so, check it on again.
  3. If you want "Hidden Views" option to stay in the on/off state when you create a new drawing, save out/replace a drawing template and use the template from now on.
