Displaying Center Of Mass

Kevin Chow
Updated

Problem

This article goes over how to display the Center of Mass in a part, assembly, or drawing.

Solution

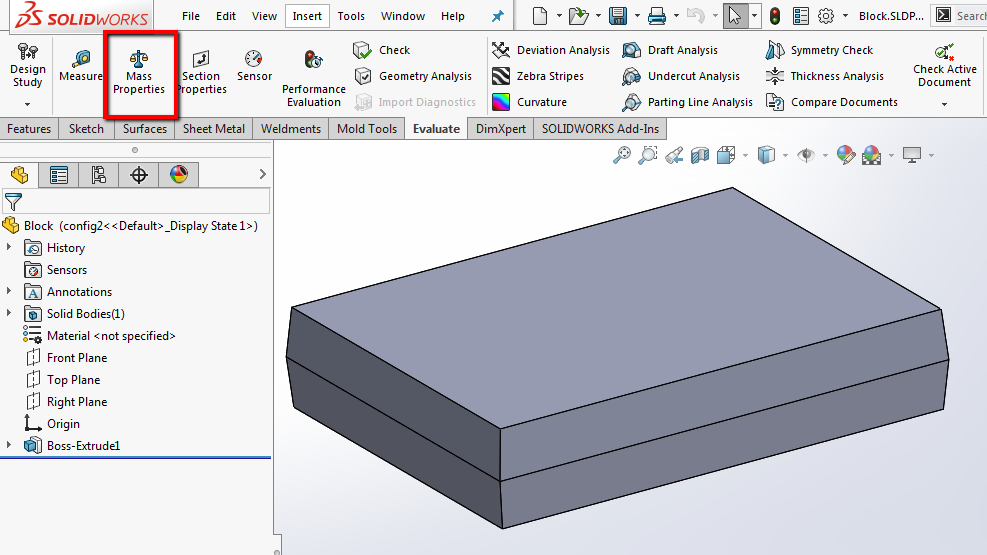

  1. In a Part or Assembly, navigate to the Evaluate tab and click on Mass Properties, or go to Tools > Evaluate > Mass Properties Click Mass Properties in the Evaluate tab

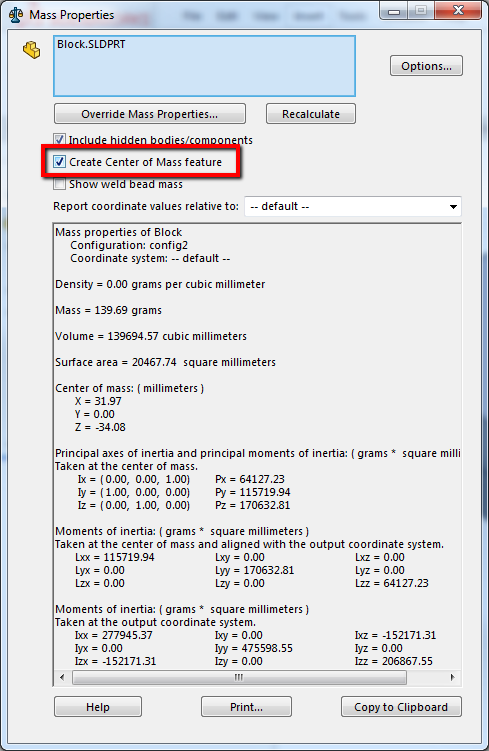

  2. In the window that comes up, enable the checkbox for "Create Center of Mass feature" and close the window
Enable Create Center of Mass feature

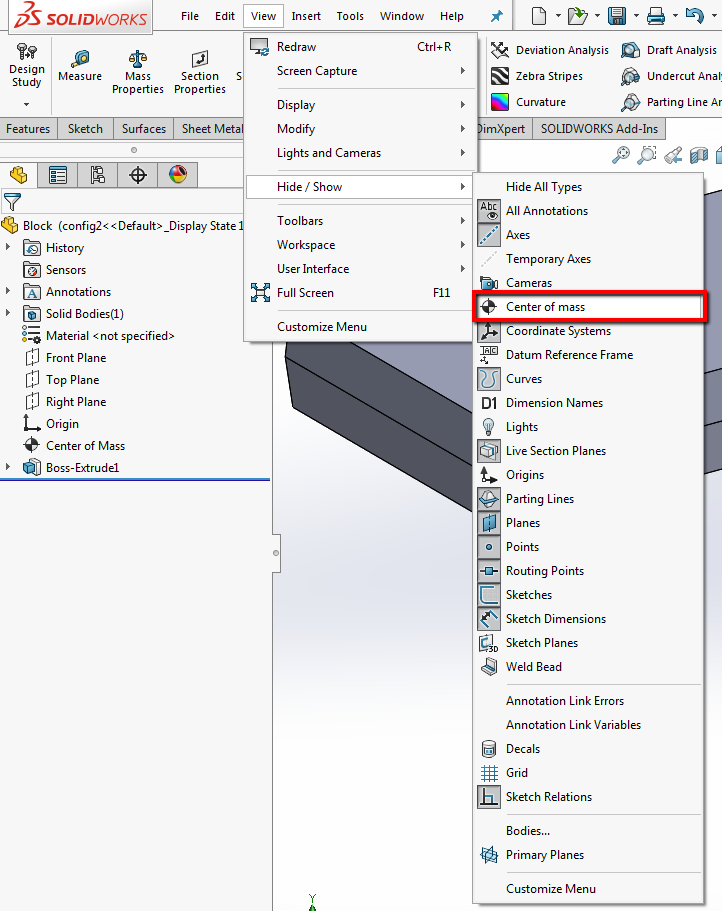

  1. The center of mass will need to be shown by going to View > Hide/Show > Center of Mass
Enable View > Hide/Show > Center of Mass

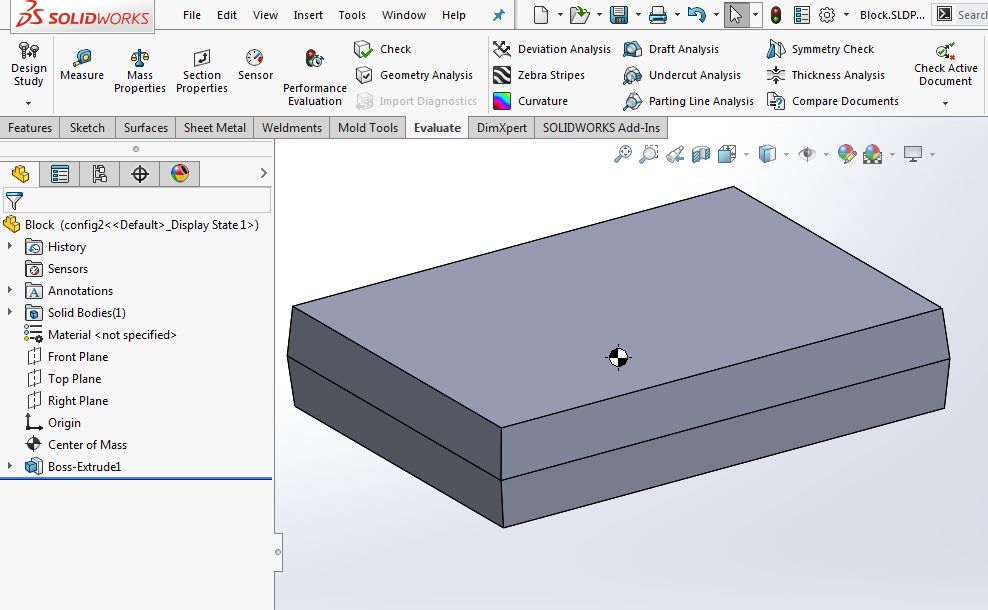

  1. The center of mass will appear in the part as shown below
Center of Mass shown

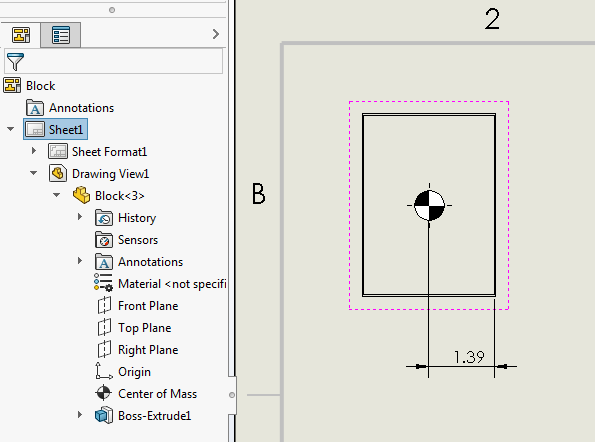

  1. To show the Center of Mass in a Drawing, right-click the Center of Mass feature in the drawing feature tree to select Show

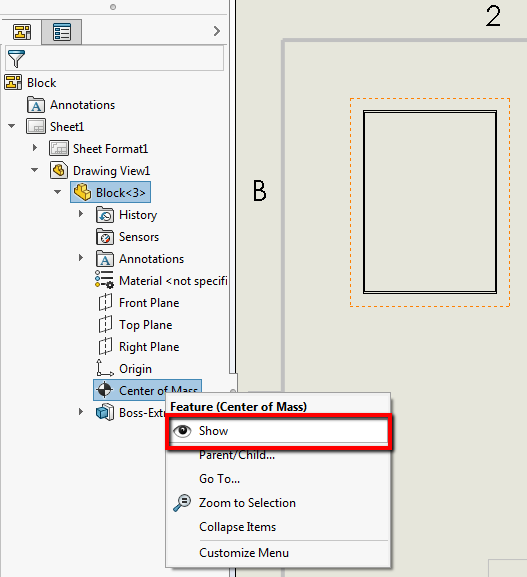

Right click Center of Mass feature and select show

For additional support, existing customers can submit a ticket or new customers can contact Hawk Ridge Systems.
